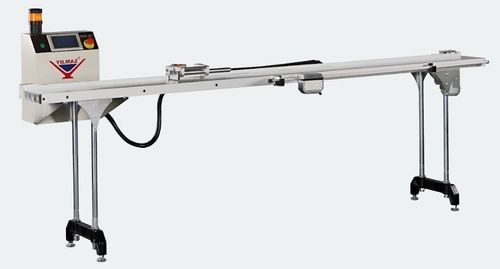

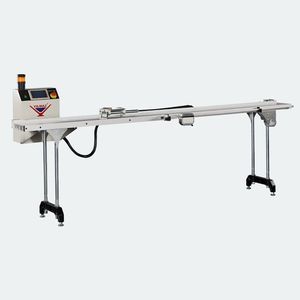

Roller conveyor SKN 300-600

linearmeasuringpositioning

Product Info
Computerized length-stop integrated with a digital roller conveyor to cut profiles to precise lengths. Available models: SKN 300 (L 3000 x W 250 mm) and SKN 600 (L 6000 x W 250 mm). Positioning accuracy ±0.2 mm. Typical footprint and weight indicated for reference.

General Features

• Manual or automatic operation modes
• Windows-based PLC with 15" touch-screen monitor
• Prepare cutting lists manually or import from PC
• Remote connection for diagnostics and troubleshooting
• Program transfer via USB memory stick
• Edit cutting lists directly on the screen
• Pieces are cut in sequence according to data from the extendible digital measuring rod

Standard Accessories

• Extendible digital measuring rod 3.0 m

Optional Accessories

• Barcode printer

Technical Specifications

• Models: SKN 300 (L 3000 x W 250 mm), SKN 600 (L 6000 x W 250 mm)
• Positioning accuracy: ±0.2 mm
• Power / Supply: 300 W / 230 V AC 1P+N+PE / 50/60 Hz
• Control: Windows-based PLC, 15" touch-screen
• Operation: manual or automatic; cutting lists from screen or PC
• Connectivity: USB program transfer; remote connection for support
• Example overall dimensions (illustrative): W 54 cm x L 305 cm x H 50 cm
• Machine weight (indicative): 193 kg / 130 kg (model dependent)
