Stop unit for conveyor HDL 400-700

Product Info

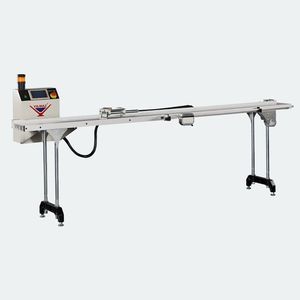

The HDL 400-700 is a servo-controlled automatic length stop designed to deliver precise profile cuts to required dimensions. It mounts to handsaws, single- or double-miter saws, drills, punch units and other cutting equipment, eliminating tape measures and manual measuring tasks.

General Features

• Supported interface languages: Turkish, English, Spanish, Russian, French
• Units: metric and imperial
• Memory: stores up to 50 different lengths
• Operation modes: manual and automatic
• Data transfer: CSV import/export via USB or Ethernet; FTP server support
• Display: 7" color HMI touch screen
• Cutting list management: prepare and edit cutting lists on-screen
• Remote technical support via laptop connection
• Design: demountable structure minimises storage footprint
• Drive mechanism: rack-and-pinion with rigid steel body providing high pushing force
• Repeatable cutting accuracy: ±0.008" (0.2 mm)
• Compatibility: adapts to handsaws, single/double miter saws, drills, punch units, ironworkers, chop saws, etc.
• Optional measuring rod: digital measuring rod (1.5–3.0 m); extendible version 1.55 / 2.955 m

Optional Accessories

• Barcode printer
• Extendible digital measuring rod (1.55 / 2.955 m)

Technical Specifications

• Model/series: HDL 400-700
• Interface: 7" color HMI touch screen
• Supported languages: Turkish, English, Spanish, Russian, French
• Units: metric and imperial
• Memory: up to 50 stored lengths
• Operation modes: manual and automatic
• Data transfer: CSV via USB or Ethernet (FTP support)
• Design: demountable structure for minimal storage footprint
• Drive mechanism: rack-and-pinion
• Construction: rigid steel body
• Repeatable cutting accuracy: ±0.008" (0.2 mm)
• Compatibility: attaches to handsaws, miter saws, drills, punch units and other cutting equipment
• Optional: digital measuring rod (1.5–3.0 m); extendible 1.55 / 2.955 m
