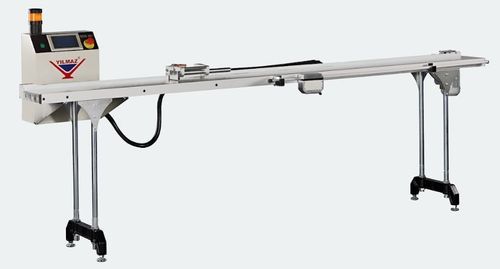

Roller conveyor SKN 301

driven rollerhorizontalstraight

Product info
Computerized automatic length stop integrated with a digital roller conveyor, designed to position stops and feed glazing bead profiles for precise cutting to required lengths.

General features

• Self-positioning conveyor stop based on values entered on the 5.5" touch screen control panel
• Suitable for precise cutting of glazing bead and profile sections
• Preparation and management of cutting lists directly on the control panel
• Manual or automatic operation modes
• Easy mounting on sawing and copy-router machines without a separate conveyor
• Integration with wireless measuring apparatus; pieces processed in order according to received measurement data
• Standard digital measuring apparatus with 3.0 m measurement capacity

Standard accessories

• Extendible 3.0 m digital measuring rod (included)

Optional accessories

• Barcode printer

Technical specifications table
Electrical: 300 W / 230V AC 1P+N+PE / 50/60Hz.
Rotation speed: ---
Cutting capacity: ---
Flow / Pressure: ---
Dimensions: W: 54 cm. L: 305 cm. H: 50 cm
Weight: 193 Kg / 130 Kg

Technical characteristics / specifications

• Model: SKN 301
• Type: Digital roller conveyor with automatic length stop
• Control panel: 5.5" touch screen for stop positions and cutting lists
• Operation: manual and automatic modes
• Measurement interface: supports wireless measuring apparatus
• Standard measuring capacity: digital measuring rod 3.0 m
• Standard accessory: extendible 3.0 m digital measuring rod
• Optional accessory: barcode printer
• Mounting: suitable for direct assembly on sawing and copy-router machines (no separate conveyor required)
• Power supply: 300 W / 230V AC single phase / 50-60Hz
• Dimensions (L x W x H): 305 cm x 54 cm x 50 cm
• Weight: 193 Kg / 130 Kg
