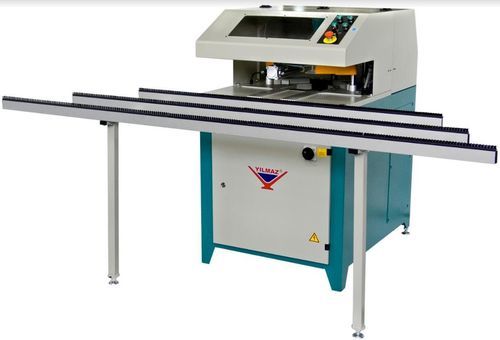

Blade cleaning machine CA 603

automaticcornervertical

Product info
CA 603 single corner cleaning machine is designed to strip bottom and top surfaces and to clean outer 90° corners of PVC profiles.

General features

• High-quality stripping and cleaning using a hydro-pneumatic system
• Maximum profile capacity (W x H): 130 x 180 mm
• Minimum profile capacity (W x H): 30 x 50 mm
• Minimum inner/outer frame sizes for profile widths W:30 and W:60 mm: L:350 x L:350 and L:380 x L:380 mm
• Pneumatically operated serial blade-change function for faster tool replacement
• Vertical and horizontal clamps for secure workpiece fixing
• Automatic stop after stripping and cleaning cycle
• PLC control system
• Centring system for accurate profile positioning on the setsquare
• Robust machine stand
• Adjustable stripping blade levels for laminated and unlaminated profiles
• Capable of processing up to 4 different PVC profile types
• Up to 4 different cutter sets can be mounted on both cutter blocks

Standard accessories

• Air gun
• Profile support table with brushed surface
• Special corner cleaning cutter set

Optional accessories

• Cleaning cutter for coloured profiles
• V-type cleaning cutter for white profiles

Technical specifications

• Model: CA 603
• Application: Stripping of bottom/top surfaces and cleaning outer 90° corners of PVC profiles
• Cutters: 4–6 (configuration dependent)
• System: Hydro-pneumatic
• Control: PLC
• Max. profile (W x H): 130 x 180 mm
• Min. profile (W x H): 30 x 50 mm
• Min. inner/outer frame sizes: for W=30 mm: L350 x L350 mm; for W=60 mm: L380 x L380 mm
• Blade change: Pneumatic serial blade-change
• Clamping: Vertical and horizontal clamps
• Automatic stop after operation
• Blade adjustment: Adjustable for laminated and unlaminated profiles
• Profile types: Up to 4 different PVC profile types
• Cutter capacity: 4 cutter sets mountable on both blocks
• Standard equipment: Air gun, profile support table, corner cleaning cutter set
