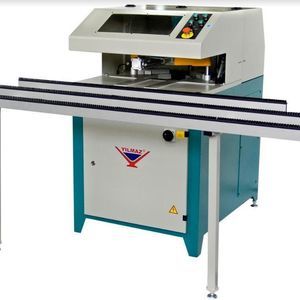

Rotation/agitation cleaning machine CNC 609

automaticmanualCNC

Product information
Corner cleaning machines are engineered to remove welding chips and burrs from PVC profiles welded at a 90° angle. CNC 609: 2 x servo drive motors. CNC 611: 4 x servo drive motors.

General features

• Independent parameter settings per frame type
• Automatic frame and sash profile recognition system
• Can be integrated into an automatic line with Four Corner Welding Machine (DK 540), Cooling Unit (SA 251) and Rotating Robot (SA 261)
• Upper and lower surfaces cleaned by separate independent cleaning units (CNC 611)
• Profile width and height measurement system
• 11 automatic profile cleaning tool sets
• Separate cleaning tools for colored and white profiles
• Memory capacity for 65,000 different profiles
• Windows-based industrial PC with 15" LCD colour touchscreen
• Remote connection via Internet for technical support
• Manual adjustment of feed rates on the control panel
• Program transfer via USB
• Portable touchscreen control panel
• Low-pressure control valve
• Automatic cartridge lubrication system
• Phase control equipment
• Processing capacity: 200–210 window frames in 8 hours (CNC 609); 240–250 window frames in 8 hours (CNC 611)

Standard accessories

• 11 tools including cleaning saw, internal scraping blades and milling cutters
• Brushed window support table

Optional accessories

• Line harmonization package YASKAWA (SIGMA 7)

Technical specifications

• Electrical: 3 kW / 400 V AC 3P PE 50/60 Hz
• Spindle speed: 18,000 RPM
• Cutter capacity / specification: 6,000 RPM, D: Ø250 - d: 30/32 mm
• Air flow: 180 L/min
• Operating pressure: 6–8 Bar
• Dimensions (L x W x H): 231 x 240 x 177 (mm)
• Weight: 790 kg
• Drive motors: 2 x servo drive motors (CNC 609); 4 x servo drive motors (CNC 611)
• Processing capacity: 200–210 frames/8 h (CNC 609); 240–250 frames/8 h (CNC 611)
