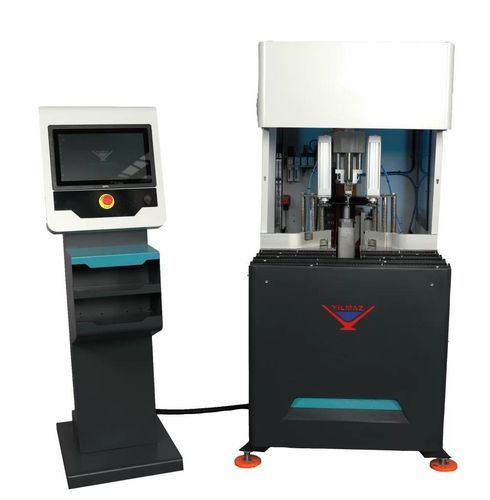

Abrasion cleaning machine CNC 611

automaticmanualCNC

Product information
CNC 611 corner cleaning machine is designed to remove welding burrs and chips from PVC profiles welded at 90°. CNC 611 is equipped with 4 servo drive motors (CNC 609 has 2).

General features

• Independent parameter settings per profile frame
• Automatic frame and sash profile recognition system
• Can be integrated into an automated line with Four Corner Welding Machine (DK 540), Cooling Unit (SA 251) and Rotating Robot (SA 261)
• Separate upper and lower cleaning units operating independently (CNC 611)
• Profile width and height measurement system
• 11 sets of automatic profile cleaning tools
• Separate cleaning tools for coloured and white profiles
• Memory capacity for 65,000 profile programs
• Windows-based industrial PC with 15" colour LCD touchscreen
• Remote connection via Internet for technical support
• Manual feed-rate adjustment on control panel
• Program transfer via USB
• Portable touchscreen control panel
• Low pressure control valve
• Automatic cartridge lubrication system
• Phase control equipment
• Processing capacity: CNC 609 ≈ 200–210 window frames / 8 hours; CNC 611 ≈ 240–250 window frames / 8 hours

Standard accessories

• 11 tools in total: cleaning saw, internal scraping blades and milling cutters
• Brushed window support table
• Line harmonization package (CNC 608 R)

Technical specifications

• Electrical / Power: 3.85 kW / 400V AC 3P PE 50/60 Hz
• Spindle speed: 18,000 RPM
• Saw / cutter spec: 6,000 RPM, D: Ø250 - bore: 30/32 mm
• Air flow: 180 L/min
• Operating air pressure: 6–8 BAR
• Dimensions (L×W×H): 231 × 240 × 177
• Weight: 700.0
• Cleaning units: separate upper and lower cleaning units (CNC 611)
• Automatic profile recognition and measurement system
• Memory capacity: 65,000 profile programs
• Control: Windows-based industrial PC with 15" touch colour LCD; portable touchscreen panel; USB program transfer
• Automatic cartridge lubrication and phase control equipment
