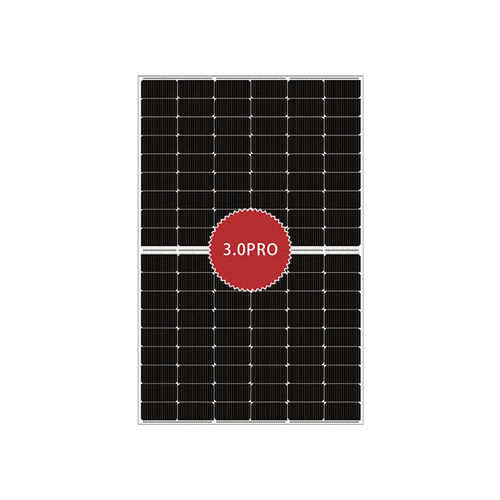

Monocrystalline silicon PV solar module PANDA 108CELL 182TOPConISOTUVIEC
Add to favorites
Compare this product
Characteristics
- Material
- monocrystalline silicon
- Certifications
- TUV, ISO, IEC
- Peak power (Wp)
Min.: 311.39 W
Max.: 435 W
- Open-circuit voltage
Min.: 35.76 V
Max.: 38.67 V
- Short circuit current
Min.: 11.22 A
Max.: 14.32 A
- Max power voltage
Min.: 29.6 V
Max.: 32.1 V
- Max power current
Min.: 10.51 A
Max.: 13.57 A
- Module efficiency
Min.: 21 %
Max.: 22.28 %
- Lenght
1,722 mm
(68 in)- Width
1,134 mm
(45 in)- Height
30 mm
(1 in)- Weight
21.5 kg
(47.4 lb)
Description
PANDA 3.0 modules use the industry's cutting-edge n-type monocrystalline TOPCon cell technology. With high quality encapsulation materials and classic glass-backsheet structure, PANDA 3.0 modules are perfectly suited to the harsh environment and provide you with high reliability and quality assurance.
