Monocrystalline silicon PV solar module PANDA 144CELL 182TOPCon
CEISOTUV

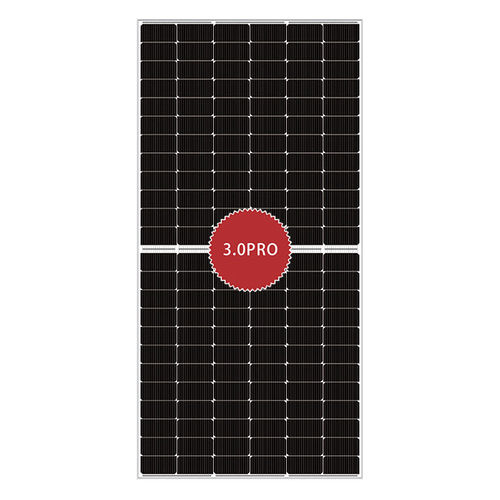

Monocrystalline silicon PV solar module - PANDA 144CELL 182TOPCon - Yingli Solar - CE / ISO / TUV

Monocrystalline silicon PV solar module - PANDA 144CELL 182TOPCon - Yingli Solar - CE / ISO / TUV - image - 2

Add to favorites

Compare this product

Characteristics

Technology

monocrystalline silicon

Certifications

TUV, CE, ISO, IEC

Peak power (Wp)

Min.: 560 W

Max.: 585 W

Open-circuit voltage

Min.: 50.46 V

Max.: 51.15 V

Short circuit current

Min.: 14.16 A

Max.: 14.56 A

Max power voltage

Min.: 41.8 V

Max.: 42.5 V

Max power current

Min.: 13.41 A

Max.: 13.77 A

Module efficiency

Min.: 21.68 %

Max.: 22.65 %

Lenght

2,278 mm
(90 in)

Width

1,134 mm
(45 in)

Height

35 mm
(1 in)

Weight

28 kg
(61.73 lb)

Description

PANDA 3.0 modules use the industry's cutting-edge n-type monocrystalline TOPCon cell technology. With high quality encapsulation materials and classic glass-backsheet structure, PANDA 3.0 modules are perfectly suited to the harsh environment and provide you with high reliability and quality assurance.
