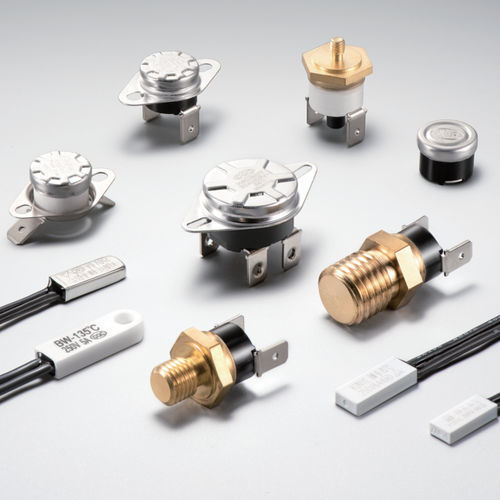

Mechanical thermostat KSD301
presetNCNO

mechanical thermostat
mechanical thermostat
mechanical thermostat
Add to favorites
Compare this product


Characteristics

Heating technology
mechanical
Type
preset
Contact type
NC, NO
Supply voltage
AC
Applications
for heating and cooling, HVAC, for freeze protection, refrigeration plant
Temperature

Max.: 175 °C
(347 °F)

Min.: 50 °C
(122 °F)

Switching power: current

10 A, 16 A

Description

KSD301 snap action thermostat is a reliable bimetal mechanical thermostat that provides a rapid response time when snapping open/close switch contacts. With fixation of working temperature, reliable snap action, less flashover, longer working life, and less radio interference, the snap disc offers long-lasting performance and reliability for your products. CQC and TUV applicable. KEY FEATURES • KSD301 series snap action thermostat is a kind of miniature hermetically sealed bimetal thermostat (1/2″ disc). It is of single-pole single-throw structure and works under resistive load. • KSD301 bimetal thermostat is in wide use in a great variety of compact type home appliances with automatic reset or manual reset to provide temperature control or temperature protection. • KSD301 snap action thermostat series is a small-size bimetal thermostat series with a metal cap,which belongs to thermal relays family. The main principle is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, then caused on or off of the circuits finally. The main characteristics are the fixation of working temperature, the reliable snap action, less flashover, longer working life and less radio interference. SPECIFICATION Electrical Rating: 16A 125V AC(Resistive Load), 10A 250V AC(Resistive Load), 16A 250V AC(Resistive Load) Differential: 10~30K (15K Standard) Temp. Tolerance: Operating Temp. ±3℃, ±5℃ Heat Durability: 220℃ Max. (PPS) Circuit Resistance: 50mΩ Max.
