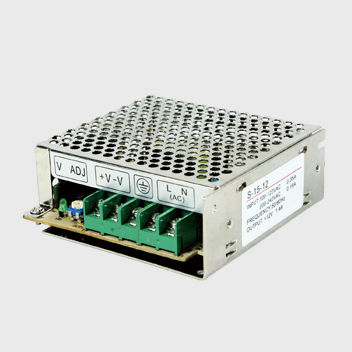

AC/DC power supply S series

single-outputswitchingwith overload protection

Features • Input voltage range:S-120/S-250:88-132VDC/170-264VAC, S-201/S-350:90-132VAC/180-264VAC, SP-500:88-264VAC, Other models:85-132VAC/170-264VAC Selected by Switch Power Supply 47-63Hz 240-370VDC; • Input current: S-15 /25: 0.7A/115V 0.3A/230V, S-35:0.8A/115V 0.45A/230V,S-50:1.3A/115V 0.65A/230V,S-60:2A/115V 1A/230V S-70:2.2A/115V 1.1A/230V,S-100:2.4A/115V 1.2A/230V ,S-120:2.6A/115V 1.3A/230V,S-145:3.2A/115V 1.6A/230V, S-150:3.2A/115V 1.6A/230V,S-201:4.5A/115V 2.5A/230V,S-250:5A/115V 2.5A/230V,S-350: 6.5A/115V 4A/230V,SP-500:7A/115V 36A/230V; • Inrush current: S-15/25:Cold start 15A/115V 30A/230V current, S-35/50/SP-500:Cold start 18A/115V 36A/230V current, S-60/70/100/120/250:Cold start 30A/115V 60A/230V current, S-145/150:Cold start 35A/115V 60A/230V current, S-201/250:Cold start 25A/115V 50A/230V current; • Leakage current:S-15/25<0.75mA/240VAC, S-35<0.5mA/240VAC, S-50/60/70/100/120/145<1mA/240VAC, S-150/201/250/350/SP-500<3.5mA/240VAC; • Start,rise,hold time:S-15/25/60/70:800ms,50ms,10ms,/115VAC, 300ms,50ms,80ms,/230VAC; S-35:200ms,100ms,30ms, S-50/100/120/201/350:200ms,100ms,20ms; S-145/150:100ms,50ms,20ms;S-250:200ms,80ms,16ms;SP-500: 1.5ms,50ms,20ms • 105-150% overload protection type:current limiting,reset,automatic recovery; • Temperature coefficient:±0.03%/℃(0-50℃); • Earthquake resistance:10-500Hz,2G 10min,/1 cycle,a total of 60 minutes,each axis; Pressure resistance:between input and output:15KVAC、input and shell:1.5KVAC、output and shell:0.5KVAC; • Isolation resistance:input and output,the input and Waikou, output and shell:500VDC/100MΩ; • Temperature,humidity:-10℃+60℃,20%-90% RH; • Storage temperature and humidity:-20℃+85℃,10%-95% RH.
