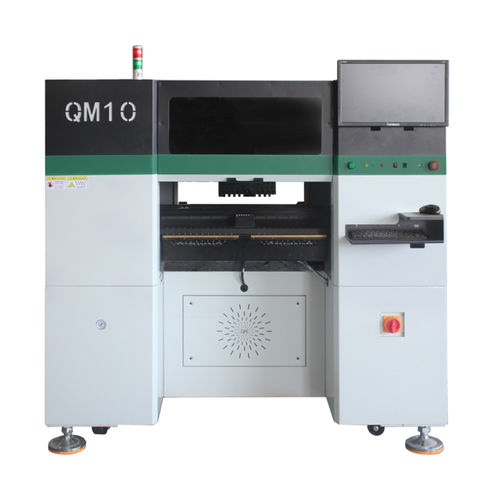

SMT pick-and-place machine QM10

automatic

The QM10 SMT pick and place machine designed with 10heads 80slots ，speed of up to 23000 components per hour (CPH). It has been upgraded from the QM81 series and incorporated customer feedback. The substrate iron plate inside the machine upgrade into thickened marble material to increase stability . The X-axis improves the structure to increase the smoothness of operation .and increased the number of linear guides （top and bottom） The Y-axis has also been increased into two linear guides on each side to improve accuracy and speed increase machine durable life. Even the model of Panasonic servo motor, driver, linear guide, and screw have been completely upgraded to cope with the working capacity of 10 heads . Upgraded the software functional such as the component library ,the visual surveillance,the safety alerts,the fault previously warning . Can easily handling special-shaped components, BGA, 0201 inch package. X Y axis adopts bigger Panasonic servo motor, without sacrificing the CPH rate with high troque to achieve never lost step accuracy ＜ 0.001mm. new features like 10 heads take material at the same time， Components size shoud be 0805 inch and above size , like 3535 LED lamp beads . ( suggest use the electric feeder to avoid the problem of insufficient air supply)
