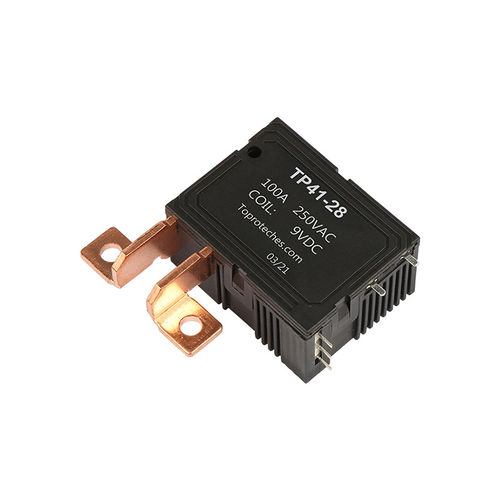

Latching relay TP41-2824VDC12VDC6VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24VDC, 12VDC, 6VDC, 48VDC, 9VDC
- Contact configuration
- 1 Form A, 1 Form B
- Network
- single-phase
- Other characteristics
- IEC, latching
- Switching current
100 A
Description
1.Single phase 100A switching capability;
2.Multi-layer blades, low temperature rise;
3.Low contact resistance < 1.0mΩ;
4.Environmental protection (comply with ROSH) ;
5.Outline dimension:43.2mm×33.2mm×22mm
6.Applied in Electronic energy meter.
Technical data
Coil data
Rated voltage: 6VDC, 9VDC, 12VDC, 24VDC, 48VDC;
Rated power
Single coil: 2W; Double coil :4W
Pulse width: <50 ms
Action time: < 30 ms
Contact data
Contact material: AgSnO2
Contact arrangement :1 A(1B)
Contact resistance: 1.0mΩ Max
Switching current :100 A
Switching voltage: 250VAC
Max. switching power 25,000 VA Max.
Electrical life:10,000 OPS
Mechanical life: 1,000,000 OPS
Insulation
Dielectric strength between contact and coil: 4,000 V eff.
Dielectric strength between contacts:2,000 V eff.
Creepage distance :8mm
Shock resistance: 10-55 Hz amplitude 1.5m
Ambient temperature : -40-+85 ℃
Weight: appox.80g
Construction: Dust protection
