Protective enclosure system GCS series
storage and dispensingfloor-mountedhinged door

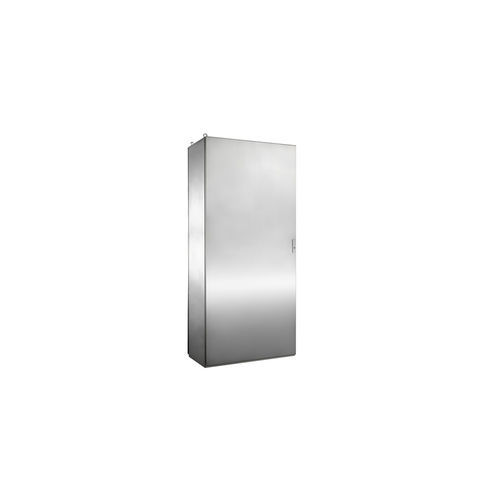

Protective enclosure system - GCS series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - storage and dispensing / floor-mounted / hinged door

Protective enclosure system - GCS series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - storage and dispensing / floor-mounted / hinged door - image - 2

Protective enclosure system - GCS series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - storage and dispensing / floor-mounted / hinged door - image - 3

Add to favorites

Compare this product

Go to the YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. website for more information

Characteristics

Type

protective, storage and dispensing

Mounting

floor-mounted

Construction

single door, with glass door, hinged door, double-door

Material

stainless steel

Product applications

industrial, control, for pharmaceutical products, for distribution switchgear

Other characteristics

outdoor, with mounting plate

Width

Min.: 600 mm
(23.6 in)

Max.: 1,200 mm
(47.2 in)

Height

Min.: 1,600 mm
(63 in)

Max.: 2,000 mm
(78.7 in)

Depth

Min.: 400 mm
(16 in)

Max.: 600 mm
(24 in)

Description

Material: Enclosure body,gland plate:15mm stainless steel AlSl304(AlSl316 for option) Front door: 1.5mm stainless steel AlSl304(or AISI316) Mounting plate: 2.0mm sheet steel galvanised plate (for single door) Mounting plate: 2.5mm sheet steel galvanised plate (for double door) Surface process: Brushed IP rate:IEC EN60529,IP55 lK rate:I K10 Standard:IEC 62208 (enclosure standards) Supply include: Enclosure body,front door,mounting plate locks,hinges,gland plates, rear panel(3 options:by screw fixed/ welding on the structure/rear door with lock) Optional:Without plinth parts FRAME STRUCTURE Fully welded frame made from 1.5 mm material Semi-closed height and width profiles Fully closed and fixed sides On the inner surface of the front door, the grounding screws On the top and bottom are increasing the conductive surface to provide grounding continuity. Stainless steel monoblock cabinet(one-piece) Product code H W D No.of doors Product code(GLAZED door) GCS-1600600400 1600 600 400 1 GCS-1600600400-W GCS-1600800400 1600 800 400 1 GCS-1600800400-W GCS-1600800500 1600 800 500 1 GCS-1600800500-W GCS-1800600400 1800 600 400 1 GCS-1800600400-W GCS-1800800400 1800 800 400 1 GCS-1800800400-W GCS-1800800500 1800 800 500 1 GCS-1800800500-W GCS-2000600400 2000 600 400 1 GCS-2000600400-W GCS-2000800400 2000 800 400 1 GCS-2000800400-W GCS-2000800500 2000 800 500 1 GCS-2000800500-W GCS-2000800600 2000 800 600 1 GCS-2000800600-W GCS-20001000400-T 2000 1000 400 2 GCS-20001000500-T 2000 1000 500 2 GCS-20001200400-T 2000 1200 400 2 GCS-20001200500-T 2000 1200 500 2 GCS-20001200600-T 2000 1200 600 2
