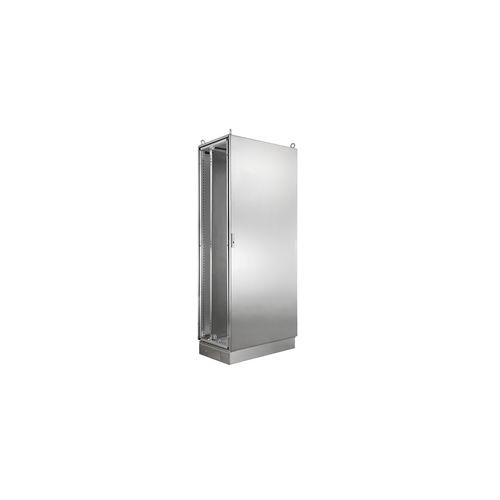

Floor-standing enclosure GS series

rectangularhexagonalstainless steel

Stainless steel modular cabinet Material: Enclosure frame,rear panel:1.5mm stainless steel AlSl304(for option AlSl 316) Top,gland plate: 1.50mm stainless steel AlSl 304(for option AlSl 316) Front door:2.0mm stainless steelAlSl304(or AIS1316) Mounting plate: 2.5mm sheet steel galvanised plate Surface process: Brushed IP rate:IEC EN60529.IP55 IK rate: lK 10 Standard:lEC 62208(enclosure standards) Supply include: Enclosure frame with hinged door,top plate,gland plate,rear panel,mounting plate Optional: Without plinth parts、 Stainless steel modular cabinet Dimension(mm) PRODUCT CODE H W D GS-1400600400 1400 600 400 GS-1400600600 1400 600 600 GS-1400600800 1400 600 800 GS-1400800400 1400 800 400 GS-1400800600 1400 800 600 GS-1400800800 1400 800 800 GS-1600600600 1600 600 600 GS-1600600800 1600 600 800 GS-1600800600 1600 800 600 GS-1600800800 1600 800 800 GS-1800600400 1800 600 400 GS-1800600500 1800 600 500 GS-1800600600 1800 600 600 GS-1800600800 1800 600 800 GS-1800800400 1800 800 400 GS-1800800500 1800 800 500 GS-1800800600 1800 800 600 GS-18001000400 1800 1000 400 GS-18001000500 1800 1000 500 GS-18001000600 1800 1000 600 GS-2000300500 2000 300 500 GS-2000300600 2000 300 600 GS-2000300800 2000 300 800 GS-2000400500 2000 400 500 GS-2000400600 2000 400 600 GS-2000600400 2000 600 400 GS-2000600500 2000 600 500 GS-2000600800 2000 600 800 GS-2000800400 2000 800 400 GS-2000800500 2000 800 500 GS-2000800600 2000 800 600 GS-2000800800 2000 800 800 GS-20001000400 2000 1000 400 GS-20001000500 2000 1000 500 GS-20001000600 2000 1000 600 GS-20001000800 2000 1000 800 GS-20001200400 2000 1200 400 GS-2200600800 2200 600 800 GS-2000800600 2000 800 600 GS-2200800800 2200 800 800 GS-22001000600 2200 1000 600 GS-22001000800 2200 1000 800 stainless steel enclosures,wall mount enclosures,metal enclosures, terminal boxes, switch boxes, aluminium enclosures, and push button boxes, Manufacturer of Electronics enclosures. IP66 Waterproof enclosures,. IP66 Outdoor Enclosure. Pole Mount Enclosure.. NEMA 6P Enclsoure,nema enclosure,outdoor electronics enclosure,electronics enclosure box,electronic enclosures metal,enclosure custom,enclosure boxes,electronics enclosures metal,ip68 box,rodents outdoor enclosure,stainless steel box,stainless steel junction box,stainless steel terminal box
