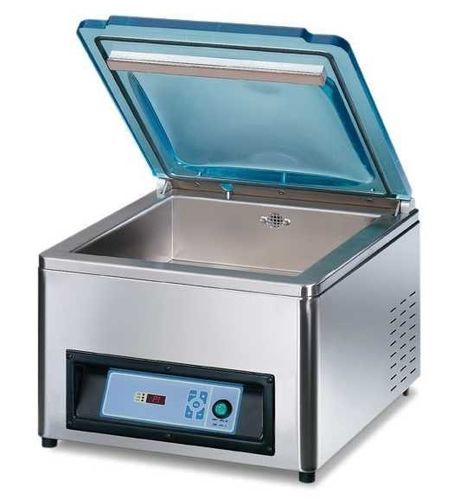

Tabletop packaging machine

with sealing barpneumaticwith sealing

Description
The structure and chamber are made of AISI 304 stainless steel. The convex lid has greater-than-standard thickness and strength. The bag sealing system with cut-off ensures an even seal and strong resistance of the package to internal stresses and temperature variations. Sealing bar dimensions are designed for commonly used packages and working methods to ensure optimal machine use.

Features

• Body and chamber made of AISI 304 stainless steel
• Supplied with filling surfaces
• Very strong round transparent methacrylate lid with locking system
• Sealing bar mounted on pistons; easy to remove for cleaning; no loose electric cables
• Low-voltage controls (24 V)

Technical specification

• Sealing bar: 415 mm
• Chamber dimensions: 435×520×115+85 mm
• Vacuum pump: 20 m³/h
• Power: 0.75 kW (1.00 HP)
• Weight: 80 kg
