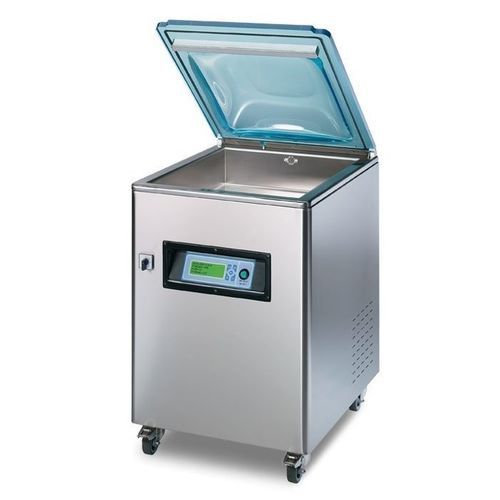

Vacuum packaging machine

automaticmanualwith sealing bar

Overview
The structure and chamber are made of AISI 304 stainless steel; the convex lid has greater-than-standard thickness and strength.
The bag sealing system with cut-off guarantees a strong, even seal and maximum resistance of the package to internal stresses and temperature changes.
The dimensions of the sealing bar are tailored to commonly used packages and working methods to ensure optimal use of the machine.

Description

• Programming is fast, simple and guided, allowing users to configure the machine to their specific needs.
• The operating cycle is completely automatic but may also be manually controlled.
• All machines in the range feature an EVC (Electronic Vacuum Control) system that measures the degree of vacuum and stops evacuation when programmed conditions are met, ensuring repeatable and precise results.
• The vacuum pumps are powerful, highly dependable and practically maintenance free, with re-circulating oil lubrication systems.
• Pumps operate at low friction for extended life and can rapidly reach vacuum levels equivalent to 99.8% of atmospheric pressure.
• The machine is fast and easy to clean: all stainless steel or smooth surfaces, extractible bars without loose wires, rounded edges and corners, with no dirt traps.

Technical Specification
2 sealing bars | MM | 540+540
Pan | MM | 620x550x120+100h
Vacuum pump | Mc/h. | 63
Motor power | KW (HP) | 1,8 (2,41)
Weight | Kg | 175

Features / Technical specifications

• Material: AISI 304 stainless steel structure and chamber; convex lid with increased thickness and strength
• Bag sealing system: cut-off for a strong, even seal and resistance to internal stresses and temperature changes
• Sealing bars: 2; dimensions 540+540 mm
• Pan dimensions: 620x550x120+100h mm
• Vacuum pump capacity: 63 Mc/h
• Motor power: 1,8 KW (2,41 HP)
• Weight: 175 Kg
• Control: Programming fast, simple and guided; EVC (Electronic Vacuum Control) for precise vacuum measurement
• Pumps: Re-circulating oil lubrication, low friction, low maintenance, can reach vacuum equivalent to 99.8% of atmospheric pressure
• Cleaning & hygiene: all stainless steel or smooth surfaces, extractible bars without loose wires, rounded edges and corners, no dirt traps
