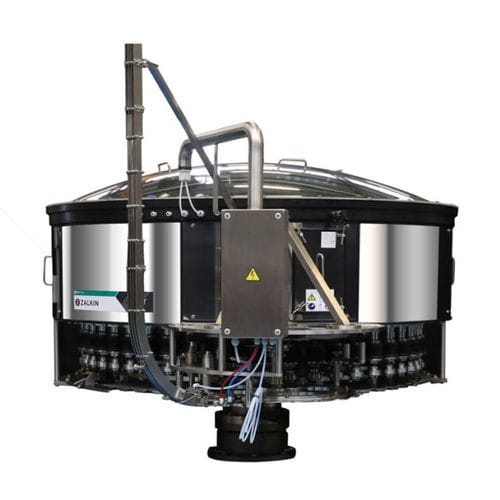

Capping machine capping turret
for the food industryfor the chemical industryfor the beverage industry

capping machine capping turret
capping machine capping turret
capping machine capping turret
Add to favorites
Compare this product


Characteristics

Product applications
capping machine
Application field
for the food industry, for the chemical industry, for the beverage industry, for the wine industry, for the pharmaceutical industry
Throughput

Max.: 1,350 p/min

Description

Zalkin rotary push-in and snap-on cappers for bloc systems use Zalkin’s proven pick and place technology to apply a wide variety of closure types to containers at speeds up to 1,350 cpm (81,000 cph). With Pick And Place technology, caps are transported single-file via a chute and fed individually into a transfer starwheel with pockets or pegs. The caps are then secured by capping head chucks which then apply the closures using precisely controlled top pressure. Zalkin's range of solutions includes capping heads specifically designed for virtually every push-in and snap-on cap on the market today. Push-in and snap-on caps include: • Oriented and non-oriented • Tethered closures • Sport caps • Plugs • T-corks • Overcaps Cap orientation on the container is an increasingly common requirement. Zalkin satisfies these requirements by using a vision system and servo capping heads to correctly align applied closures. BLOC PUSH-IN AND SNAP-ON TURRET HIGHLIGHTS: • Multiple models and options accommodate a wide range of speeds and applications • Stainless steel construction • 3 to 48 capping heads • Speeds up to 1,350 cpm (81,000 cph) • Closure diameters from 18 mm to 300 mm • Multiple push-in and snap-on capping head configurations provide solutions for a wide range of cap requirements • Fast capping head changeover • Five standard pitch diameters: 300, 360, 480, 640 & 720 mm • Custom pitch diameter configurations are available • Multi-turret models are available (two or more capping turrets on same bloc base)
