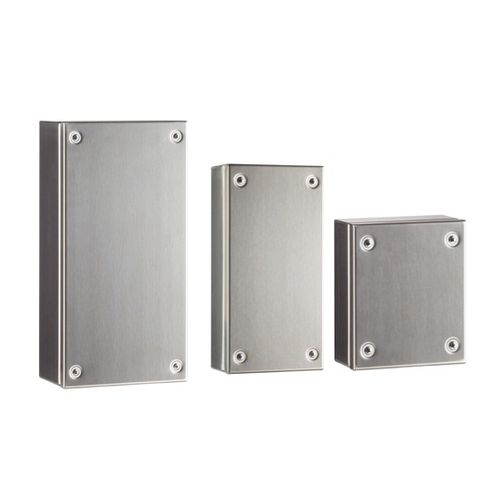

Wall-mount enclosure ES-PU A seriesrectangularstainless steelfor electrical installations
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- stainless steel
- Application
- for electrical installations
- Protection level
- IK 10, IP66
- Other characteristics
- monobloc
- Width
Max.: 280 mm
(11 in)Min.: 80 mm
(3.1 in)- Height
80 mm, 100 mm, 120 mm, 160 mm
(3.1 in, 3.9 in, 4.7 in, 6.3 in)- Depth
60 mm, 70 mm, 90 mm
(2.4 in, 2.8 in, 3.5 in)
Description
Casing:
1,2 mm and 1,5 mm thick stainless-steel; welded monobloc structure.
Fixed solid cover:
1,5 mm thick stainless-steel; polyurethane sealing gasket; M6 fixing screws with security ring.
Earthing:
M4 pins to be welded on bottom base for DIN guide installation and on cover. BY SEPARATED ORDERING: DIN support.
Finish:
Fine scotch brite medium satin, 240 grit.
Material:
1,2 mm and 1,5 mm thick AISI 304 stainless-steel. In AISI 316 stainless-steel on request.
