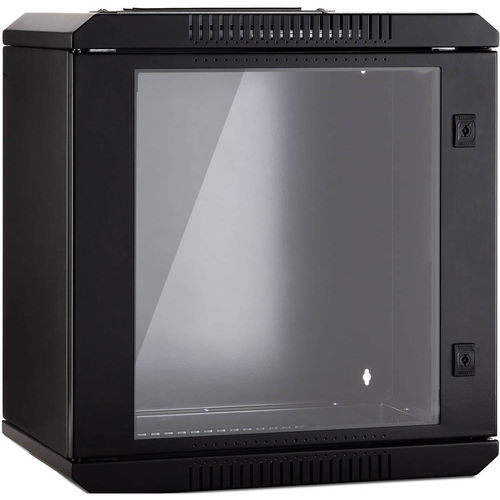

Network enclosure TCW P400 series19" rackflangerectangular
Add to favorites
Compare this product
Characteristics
- Construction
- 19" rack, flange
- Configuration
- rectangular
- Material
- carbon steel
- Application
- network
- Other characteristics
- with transparent cover, monobloc
- Width
600 mm
(23.6 in)- Height
367 mm, 500 mm, 634 mm, 767 mm, 900 mm
(14.4 in, 19.7 in, 25 in, 30.2 in, 35.4 in)- Depth
400 mm
(15.7 in)
Description
Casing:
1,5 mm thick case; monobloc structures, with aeration flaps.
Internal supports:
front supports drilled with RACK 19”pitch, in 2,0 mm thick galvanised steel
sheet (Sendzimir), depth adjustable with 25 mm pitch.
Cable entry flange:
grommet flange an top and bottom sections of back casing, with one brush.
Transparent door:
sp.1,5 mm thick; crystal porthole; polyamide locking system with double-comb tool configuration; 215° opening with right hinges.
Painting:
Thermosetting powders.
Material:
1,5 mm thick carbon steel sheet.
