high-pressure, cleaning, for petrochemical applications
Other characteristics
standard
Inner diameter
Min.: 13 mm (0.512 in)
Max.: 38.2 mm (1.504 in)
Outer diameter
Min.: 22.4 mm (0.882 in)
Max.: 54 mm (2.126 in)
Pressure
Min.: 207 bar (3,002.281 psi)
Max.: 275 bar (3,988.538 psi)
Temperature
Min.: -40 °C (-40 °F)
Max.: 55 °C (131 °F)
Description

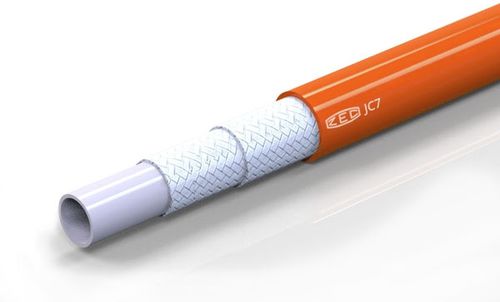

Inner core in thermoplastic compound, reinforcement in double polyester fiber braid and outside covering in antiabrasion polyurethane, pin-pricked, stabilized to UV rays and resistant to hydrolysis for outdoor applications, in environments having high humidity and saline levels.
Applications:
The JC7 Series hoses have been created for water applications in the high pressure cleaning field.
