Hydraulic hose MTKM seriessteelpolyurethanethermoplastic
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- steel, polyurethane, thermoplastic, polyamide, aramid
- Applications
- high-pressure, for petrochemical applications, for marine applications
- Other characteristics
- standard, waterproof, perforated
- Inner diameter
Max.: 32 mm
(1.26 in)Min.: 6.4 mm
(0.252 in)- Outer diameter
Max.: 45.2 mm
(1.78 in)Min.: 14.5 mm
(0.571 in)- Pressure
Max.: 800 bar
(11,603.019 psi)Min.: 275 bar
(3,988.538 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description

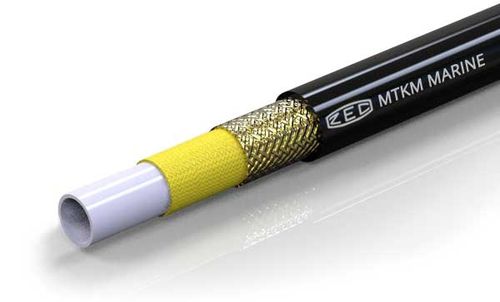

Inner core in polyamide, reinforcement with Aramid fiber braids and one high tensile steel braid, exterior covering in antiabrasion polyurethane stabilized to UV rays and resistant to hydrolysis and micro-organisms, micro perforated on request for the conduction of air and compatible gas.
Applications:
the MTKM series hoses have been created for the very high pressure conduction of Polyols, Solvents and Paints, requiring good hose flexibility for outdoor applications in MARINE environments.
