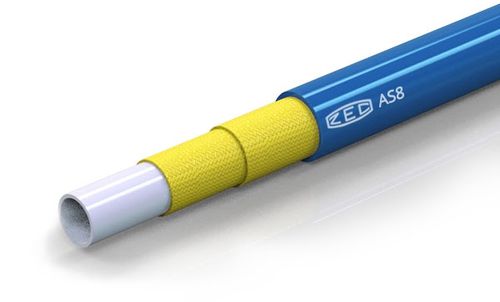

Anti-static hose AS8 seriesfor paintpolyurethanethermoplastic
Add to favorites
Compare this product
Characteristics
- Use
- for paint
- Material
- polyurethane, thermoplastic, polyamide, aramid
- Applications
- high-pressure
- Other characteristics
- standard, anti-static, perforated
- Inner diameter
Min.: 4.8 mm
(0.189 in)Max.: 13 mm
(0.512 in)- Outer diameter
Min.: 10 mm
(0.394 in)Max.: 20.3 mm
(0.799 in)- Pressure
Min.: 245 bar
(3,553.425 psi)Max.: 467 bar
(6,773.262 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Inner core in polyamide, reinforcement in due Aramid fiber braids, external covering in antiabrasion micro perforated polyurethane for the conduction of air and compatible gases. The hose's electrical resistance is less than 3 x 104 Ω/m in accordance with ISO 8031 Standard.
Applications:
hoses of the AS8 Series have been created for the high pressure conduction of Polyols, Solvents, Paints, and compatible gases.
