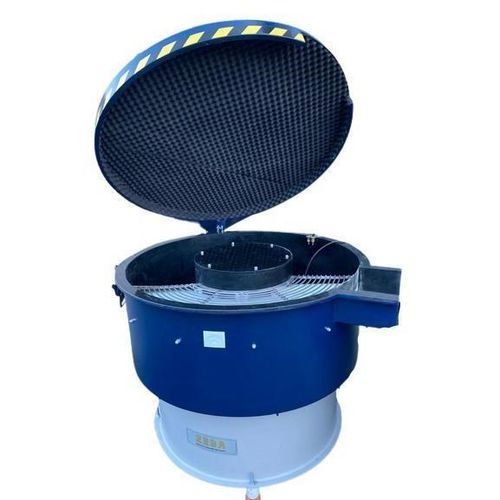

Polishing vibratory finishing machine ZCVS

deburringfinishingmetal

Overview
ZCVS Series – Round Type Surface Finishing Machines are versatile and high-performance machines used for deburring, polishing, smoothing, oil and rust removal, descaling, color brightening, matting, and aging of metal or non-metal materials. These machines are suitable for almost any type of part and provide superior surface quality.

General Features

• Most commonly used type
• Various volumes ranging from 100lt to 1650lt
• With sieve
• Deburring and polishing for all kinds of metal and non-metal materials
• Compatible with automation systems
• Optional accessories

Applications

• Deburring
• Polishing
• Smoothing
• Oil and rust removal
• Descaling
• Color brightening
• Matting
• Aging

Design and Technical Features

• The chamber design ensures the desired surface quality by minimizing process time.
• The O-shaped chamber design is developed for vibration optimization and optimal kneading motion.
• The chamber is made of special steel with a stress-free and vibration-resistant welded structure.
• Ergonomically designed chassis height and spring design for high efficiency.
• Reinforced support construction with increased resistance to vibrations.
• Adjustable isolators for vibration absorption.
• CE and Ex standard, cast body, vibration-compatible, gap-bearing, lubrication-free special motor series.
• Long-lasting use with 90 Shore polyurethane coating inside the chamber.
• Manual ramp for easy separation of stones and materials; ergonomic handle design for easy use.
• Pneumatic ramp option for automatic screening.
• Screens made of polyamide; screen holes can be cut to desired size and easily replaced.
• Easy-to-open stone discharge section.
• CE certified electrical panels; main switch and emergency stop switch, operation time control unit, and time clock in standard equipment.
• Three-phase electrical connection.
• Optional dosing pump control, speed control unit, valve control unit can be added.
• Can be integrated with PLC software automation systems.
• Clean water inlet and dirty water discharge valves; water valves can be changed to solenoid valves and controlled from the electrical panel.
• Standard machine-mounted dosing pump; automatically sprays chemicals into the chamber.

Characteristics / Technical Specifications

• Type: Round Type Surface Finishing Machine
• Series: ZCVS Series
• Volume options: 100lt – 1650lt
• Chamber: O-shaped, special steel, 90 Shore polyurethane coating
• Motor: CE and Ex standard, cast body, lubrication-free special motor
• Electricity: Three-phase connection, CE certified panel, main and emergency stop switch
• Automation: PLC compatible, optional speed and valve control
• Additional equipment: Dosing pump, manual/pneumatic ramp, polyamide screens
• Usage: Deburring, polishing, and surface processing for metal and non-metal materials
