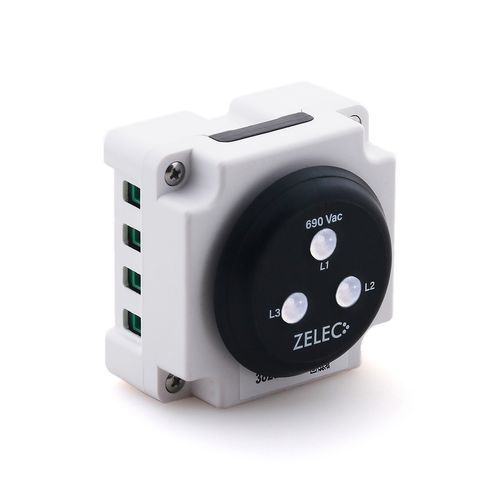

Steady indicator light TRILAC6W

LEDpanel-mountIK 08

The Trileds® range is the most complete solution on the market for indicating the presence of voltage on AC and DC networks. This indicator has been specially designed for specific 690 Vac applications, such as motors. These three-phase indicator lights, designed for installation in switchboards or electrical cabinets, provide a clear indication of the presence of voltage and the supply status of the 3 phases, thanks to their three distinct les. To guarantee user safety, the operating voltage is specified on the front of the product. The range is compatible with AC (three-phase or tetraphase) or DC electrical networks. It is also suitable for networks with high voltages (400 Vac, 690 Vac, 1000 Vac and 400 Vdc) or special frequency (400 Hz). Characteristics: - The special design of the rear housing of our 3 leds indicator allows direct connection of special voltages, such as 690 Vac, and simple display of voltage presence on the front panel of your cabinet. - The depth of the enclosure has been reduced to 31 mm, which meets the standard dimensions of enclosures on the market and allows door mounting even with faceplates. The width of the housing is identical to the size of the Trileds® Ø30.5 mm wing nut. - The round front panel of the sightglass is easily mounted on the cabinet door thanks to its standard 22.5 mm drilling diameter. - An opening at the bottom of the enclosure allows a cable clamp to be passed through to guide cables into the cabinet.
