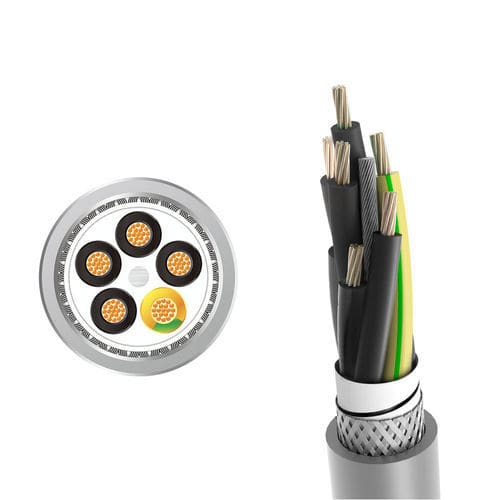

Power cable MC 712 CP

DINflame-retardantstranded

Can be used as control cables in tool machine, conveyor belts, production lines of machinery production, air-conditioning systems and wood working machines, adapting to greasy and wet environment. It is suitable for fixed applications or non-sustained shuttle bending movement,and can also be used outdoors. —Test Voltage Core/Core: 4000V Core/Shield: 2000V —InsulationResistance(20°C) ≥20MΩ.km — Minimum Bending Radius FixedApplication: 6D(D=cablediameter) OccasionalMovement: 20D(D=cablediameter) Conductor: Fine stranded bare copper, according to IEC 60228/VDE 0299 class5 Insulation: PVC Insulation Color: According to DIN VDE 0293,black cores with white numbering, green-yellow conductor Shield: Tinned copper braiding Jacket: PUR Color: Grey(similar to RAL 7001) Flame resistance according to IEC60332-1 Have small bending radius and good performance of flexibility Extremely oil resistance, abrasion resistance and anti-hydrolysis Excellent resistance to external EMI Have small outer diameter without inner jacket to save space
