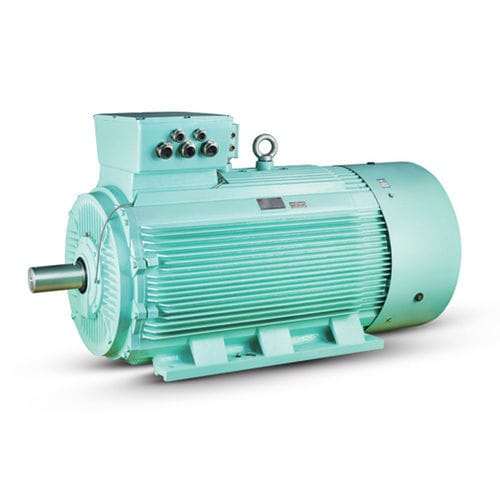

High-power motor Y3 seriesasynchronousthree-phase380 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 380 V
- Protection class
- IP55
- Applications
- for the mining industry, for the chemical industry, food, for medical applications, for the textile industry
- Other characteristics
- high-efficiency, high-power
- Power
Min.: 200 kW
(271.92 hp)Max.: 630 kW
(856.56 hp)- Intensity
Min.: 434 A
Max.: 1,096 A
- Rotational speed
Min.: 590 rpm
(3,707.0793 rad.min-1)Max.: 2,982 rpm
(18,736.4586 rad.min-1)
Description
Y3 series high power three-phase asynchronous motor is suitable for non-explosive gas environment. As a prime mover,can be widely used in mining, mechanical industry, petroleum chemical industry, power plants, metallurgy, transportation,textile, medicine, food processing, and other enterprises, used to drive all kinds of general machinery, such as compressor,water pump, crusher, hoist, centrifuge, conveyor and other mechanical equipment.
Structure
The degrees of protection for main unit of motor: IP55 ;
Cooling type: IC411 ;
Insulation class: F.
Operation Conditions
Rated voltage: 380V;
Rated Frequency: 50Hz;
Operation mode is S1(continuous duty);
Less than 1000 meters above elevation;
The variation of temperature to the season shall be kept with inl5-+40t.
