Induction motor IE3 series
three-phase380 Valuminium

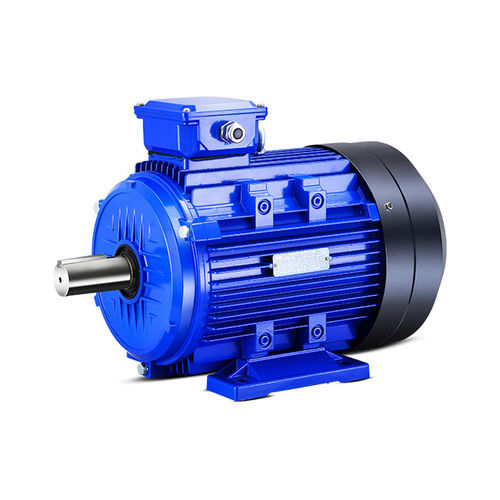

Induction motor - IE3 series - Zhebao Group Co., Ltd. - three-phase / 380 V / aluminium
Induction motor - IE3 series - Zhebao Group Co., Ltd. - three-phase / 380 V / aluminium
Induction motor - IE3 series - Zhebao Group Co., Ltd. - three-phase / 380 V / aluminium - image - 2
Induction motor - IE3 series - Zhebao Group Co., Ltd. - three-phase / 380 V / aluminium - image - 3
Induction motor - IE3 series - Zhebao Group Co., Ltd. - three-phase / 380 V / aluminium - image - 4
Add to favorites
Compare this product

Characteristics

Type
induction, three-phase
Voltage
380 V
Configuration
aluminium, compact
Protection class
IP55
Efficiency classes
IE3
Power

Max.: 7,500 W
(10.2 hp)

Min.: 120 W
(0.16 hp)

Intensity

Max.: 15,000 mA

Min.: 390 mA

Rotational speed

750 rpm, 1,000 rpm, 1,500 rpm, 3,000 rpm
(4,712.389 rad.min-1, 6,283.1853 rad.min-1, 9,424.778 rad.min-1, 18,849.5559 rad.min-1)

Description

Aluminum case series three-phase asynchronous motors, with a new design of aluminum alloy die-casting housing,its installation size,electrical performance and cast iron shell the same, with a novel appearance,compact structure,easy maintenance and other characteristics,can be widely used in fans, water pumps, reducer and other fields. 　　The efficiency value of this series can meet the level 2 standard stipulated in GB18613-2012,namely lE3 of EC60034-30-1:2014. 　　Structure 　　The degrees of protection:lP55; 　　Cooling type:IC411; 　　lnsulation class:155(F). 　　Operation Conditions 　　Rated voltage:38OV; 　　Rated Frequency:50Hz; 　　Operation mode is s1(continuous duty); 　　Less than 1000 meters above elevation; 　　The variation of temperature to the season shall be kept within -15~+40℃.
