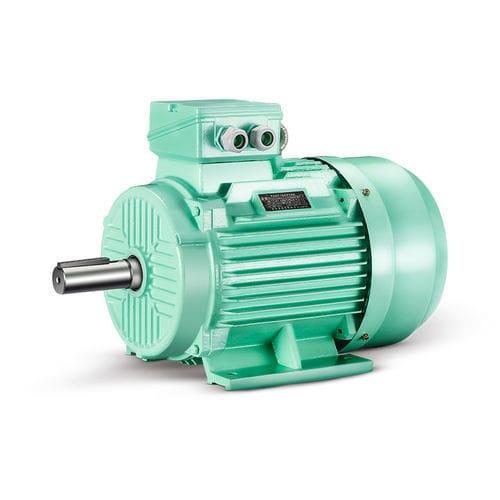

High-efficiency motor YE3 series

three-phaseinduction380 V

YE3 series super-high efficiency three-phase asynchronous motor is a totally-enclosed squirrel cage three-phase asynchronous motor manufactured by adopting novel materials and novel processes . Its efficiency index is consistent with the efficiency value of grade 2 energy efficiency specified in GB18613-2012 Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Small and Medium Three-Phase Asynchronous Motors, and is consistent with the IE3 efficiency value of IEC60034-30. The improvement of the efficiency in its design is in line with the state's requirements on the energy saving and consumption reducing of the manufacturing sector. This series of motor is characterized by good energy-saving effect, reasonable structure, high protection grade, large margin of temperature rise, etc., is suitable for various application occasions of machine tools, fans, water pumps, packing machinery, transport machinery, etc., and is an ideal upgrade product for Y2 and YX3 series motors. Structure The degrees of protection: IP55; Cooling type: IC411; Insulation class: F. Operation Conditions Rated voltage: 380V; Rated Frequency: 50Hz; Operation mode is S1 (continuous duty); Less than 1000 meters above elevation; The variation of temperature to the season shall be kept within-15 - +400C.
