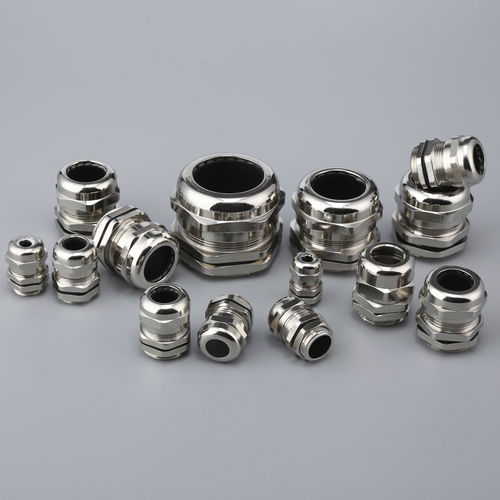

Brass cable gland G（PF）TypeIP68fire-resistantUV-resistant
Add to favorites
Compare this product
Characteristics
- Material
- brass
- Protection level
- IP68, fire-resistant, UV-resistant, corrosion-resistant, increased safety, insulated, chemical-resistant, flame-retardant, impact-resistant, weatherproof
- Other characteristics
- threaded, hexagonal, high-pressure, for railway applications, high-temperature, for the chemical industry, with sealing cap, for photovoltaic modules
- Cable diameter
Max.: 70 mm
(2.76 in)Min.: 3 mm
(0.12 in)- Thread diameter
Max.: 75.18 mm
(2.96 in)Min.: 13.16 mm
(0.52 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Brass cable glands
Thread: Metric, PG, G(PF), and NPT thread
Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
