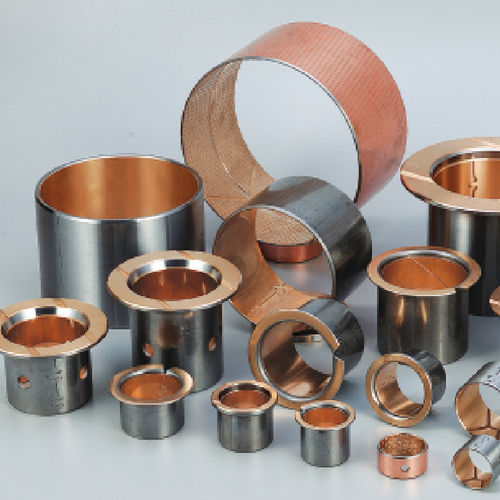

Flange plain bearing CSB-800

cylindricalleadsteel

1. Bronze Lead Sintered Alloy, provides good self lubricating feature and has good fatigue resistance and anti-seizure feature. 2. Steel Backing, provides the mechanical strength of the bearing. Features The bronze lead alloy of CSB-800 is CuSb10Pb10, the low lead material CSB-815 with the alloy CuSn10Pb5 is also available. These materials have low friction coefficient and good wear resistance and they are suitable for lubricated working conditions. To improve the lubricating performance, oil grooves or oil deposits could be optional designs. Typical Applications These materials are suitable for using under middle load and middle to low speed conditions. The good imbedibility of the alloy provides anti-dust feature of the bearings. The bearings can be used under dust environment and where containments existed. The typical applications include connection rods, undercarriage rollers, hydraulic cylinder rod eyes, material handling machinery, agriculture machinery, forest machinery and so on. These two materials are with lead which is restricted to be used for some special parts according the relative laws or regulations
