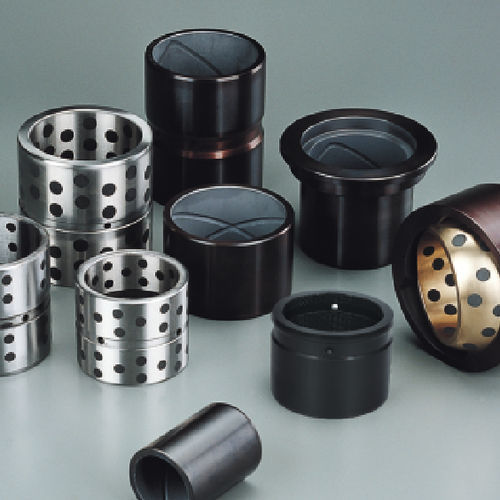

Flange plain bearing CSB200C

linearcylindricalcoated

Hardened S45C steel bearings. The heat treatment improves the wear resistance and impact resistance of the material. Oil grooves and deposits are available depending on the requirements. The oil grooves and deposits pattern ensures the oil or grease spread evenly on the bearing surface, combined with self-lubricating technology, the bearing surface could be coated or embedded with solid lubricants to improve its lubricating performance. Features This is the most economical solution of slide bearings. It is suitable for high load low speed application where impact and dusty environment working conditions existed. In addition to the initial lubricating, periodically lubricating is necessary because marginal lubricating condition can result into a short duration of the bearings. It is not recommended to be used under dry condition and a proper lubrication system must be considered when use this kind of bearings Typical Applications The typical applications of this material include the port machinery, forest machinery, construction engineering machinery, truck axles and material handling machinery as well as the rod eyes of the hydraulic cylinders and connecting bearings
