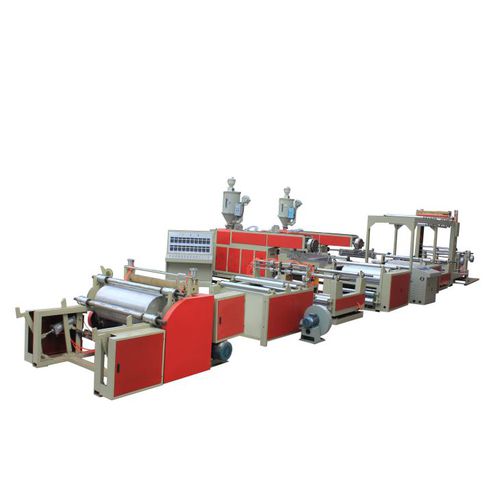

High-speed laminating machine

with extruderfor paperfor aluminum foil

Main Parameters Application of Resin - LDPE、PP、PE、EVA、EAA、EMA Basic Material - 35-425g paper, nonwoven fabric, chemical fabric, woven fabric, aluminum foil, PVC, BOPP, BOPET, BOPA, CPP, CPE, linen Max Speed - 150M/Min Max Coating Width - 800mm Coating Thickness - 0.010—0.050mm Evenness of Coating - Error ±5% Max Extrusion Amount - 260kg/小时 260kg/hour Inner Dia. Of Material Roll - 76mm Total Power - About 100KW, Operating Power - 60KW Introduction 1. Unwind double turret with 3 inch air shaft with non stop. 2. Max unwind diameter 1500mm 3. Unwind constant auto tension control. 4. Three roller lamination sturcture,back pressing roller make the rubber roller more balanced and the lamination more firm. 5. The silicon roller make the product leave the cooling roller more easily. 6. Infeed adjustment roller can avoid different material thickness. 7. Rewind double turret with surface rolling type with double linear rack. 8. Max rewind diameter 1500mm 9. It is equipped with pneumatic edge cutting device and active earnest side dish cutting device. 10. Rewinding pressing roller pneumatic control. Hot Tags: High Speed Double Extruder Extrusion Lamination Machine, China, suppliers, factory, price
