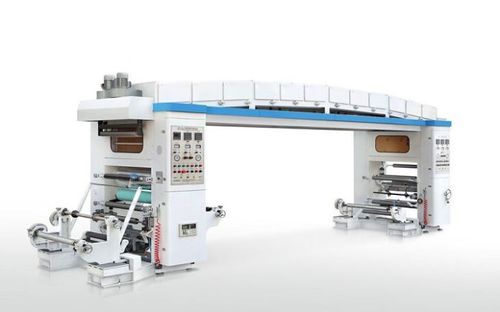

Paper laminating machine GF series

for plasticsfor plastic filmfor aluminum foil

It is suitable for laminating plastic+plastic, plastic+aluminum foil, plastic+paper, plastic+non woven, it is mainly used to make food package bag, after lamination, the bag will be strong and not easy to split. Features 1. Unwind uses powder brake to control the air shaft 2. Rewind uses torque motor to control the air shaft 3. Each unwind has one EPC device to prevent the material from moving left or right 4. Manually oven open and close, length 6 meters. 5. Gluing is inverter motor control, it can make gluing more accurate. 6. Pneumatic pressing roller is convenient for operation, pneumatic heavy type doctor blade, it has a longer life and can remove glue completely from the anilox roller. 7. Lamination roller is heated by heat-conducted oil, inverter motor control. 8. Floating roller can micro adjust the tension during machine running. 9. It can be installed with aluminum foil station which is only for putting aluminum foil, because aluminum foil is very easy to get shrink, the station should be near the laminating part. 10. Pneumatic pressing roller is convenient for operation, pneumatic heavy type doctor blade, it has a longer life and can remove glue completely from the anilox.
