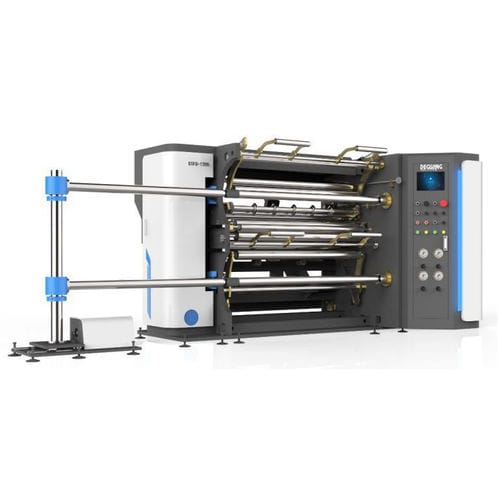

Paper slitter-rewinder GSFQ1300B
for plastic filmsautomatichigh-speed

paper slitter-rewinder
paper slitter-rewinder
paper slitter-rewinder
paper slitter-rewinder
paper slitter-rewinder
Add to favorites
Compare this product


Transformed product
for paper, for plastic films
automatic, high-speed
Working width

1,300 mm
(51 in)


400,000 mm/min
(262 in/s)


Width - 1300mm Unwind diameter - 800mm Rewind diameter - 600mm Paper core diameter - 76mm or 152mm Slitting speed - 400m/min Slitting width - 30-1300mm Slitting precision - 0.5mm Power - 11KW Weight - 4000KG Dimension - 4200*2800*1800mm Features: This machine is for slitting big width roll to small width roll, suitable for material of plastic film like Bopp, pvc, pe, pet, cpp, nylon and paper, non woven, PP woven. 1. Unwind is controlled by pneumatic brake, comparing with normal magnetic powder brake, it can stand heavier roll and not easy to break down, also the controlling is more precise. Shaftless hydraulic loading which is convenient to load the roll, and hydraulic is easy to lift heavier roll. 2. Unwind cone can work with both 3 inch and 6 inch 3. Two rewinding shaft is pneumatic friction shaft which has best slitting accuracy. 4. Main motor and two rewind shaft is controlled by servo motor, comparing with inverter motor, servo motor has more precise controlling and not easy do break down. 5. It is equipped with high precision EPC which can prevent the material moving left or right 6. The whole machine is equipped with PLC, tension is automatically control, you can input material diameter, thickness by touch screen which is convenient for operation. 7. It is equipped with flat blade for plastic film or rotary blade for paper, non woven. 8. It has Laser positioning device to locate the position of paper core 9. It is installed with static brush to remove static electric away during high speed slitting. 10. It is installed with a blower to blow the waste edge away. 11. Waste winding device is optional with extra cost.
