Technical parameter
Max material width - 2600mm
Max unwind diameter - 1800mm
Max rewind diameter - 1500mm
Max speed - 500m/min
Total power - 23KW
Weight - 8000KG
Dimension - 5300*4050*2600mm
Suitable material - Craft paper,copperplate paper and other paper max 400GSM

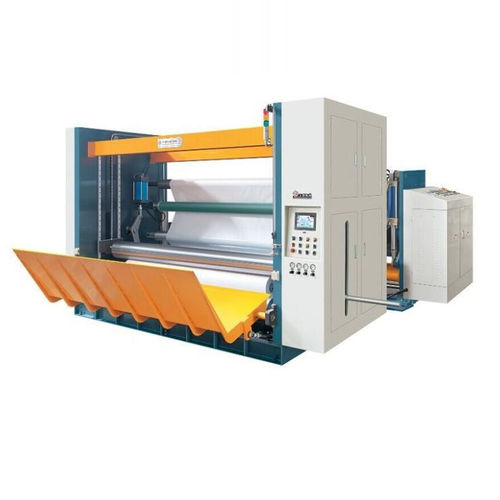

This machine is mainly for slitting large diameter paper roll from big width to small width.
Features:
1. Whole machine is PLC control with touch screen, convenient operation.
2. Unwind use pneumatic brake control,the roll diameter is automatically calculated by PLC to achieve constant tension control.
3. Rewind use inverter motor to achieve linear velocity control
4. It has pneumatic pusher to unload the finished roll, the lifting platform is hydraulic control which has big power to lift heavy paper roll.
5. Unwind Shaftless hydraulic loading which save labor and convenient operation.
6. EPC device can prevent the material from moving left or right to ensure the slitting accuracy.
