- Zhejiang Dongzheng Motor Co., Ltd.

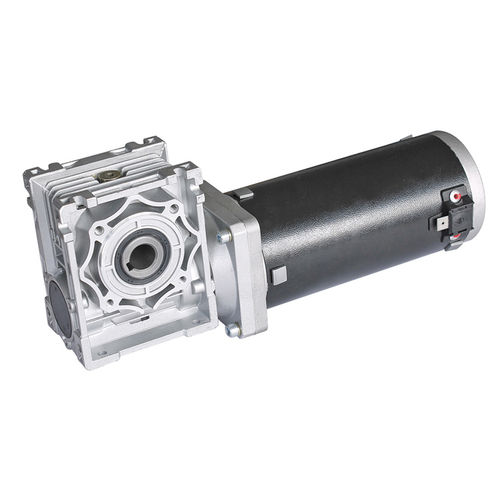

DC gear-motor 90ZY200-RV040i50permanent magnetwormright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Voltage
- 12 V
- Torque
- 20 - 50 Nm
- Other characteristics
- low-noise, maintenance-free
- Gear ratio
50 unit
Description
DC RIGHT ANGLE GEAR MOTOR 90ZY200-RV040i50 SPECS & FEATURE
· 90mm OD / 200mm Body Length DC Brushed Motor
· NMRV Series Gearboxes
· Voltage 12 V DC
· Rated Torque 40N.m
· Rated Speed 30RPM
· Gear Ratio 50:1
· Operation Model S1
· Max. Efficiency 42%
