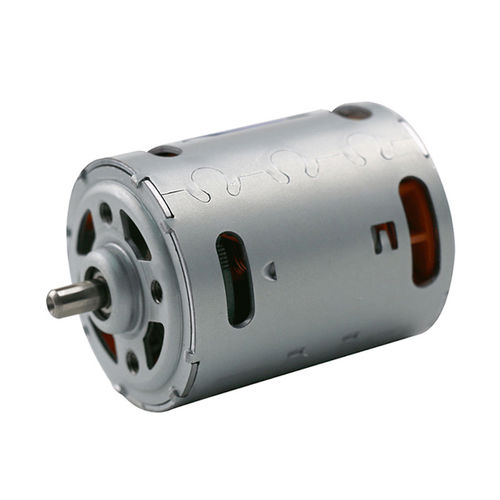

Brushless motor 52ZWN65DC18 Vmaintenance-free
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 18 V
- Protection class
- maintenance-free
- Applications
- for robotics, agricultural, for battery-powered systems, for lawn-mowers, for robotic lawnmowers
- Other characteristics
- custom
- Power
Min.: 18 W
(0.02 hp)Max.: 100 W
(0.14 hp)- Torque
0.11 Nm
(0.081132 ft.lb)- Rotational speed
4,500 rpm
(28,274.3339 rad.min-1)Min.: 0 rpm
(0 rad.min-1)Max.: 5,300 rpm
(33,300.8821 rad.min-1)- Diameter
51 mm, 52 mm
(2.01 in, 2.05 in)
Description
Lawn Mower Cutting DC Motors
52ZWN, 57ZWN
Typical applications: Lawn Mower Robot Drive DC Gear Motors & Cutting DC Motors
Robot Lawn Mower Drive Motor General Technical Specifications:
Motor Type: Brushless / brushed DC gear motor
Operating Voltage: 12 ~ 24V DC
Rated Speed: 20 ~ 70rpm
Rated Torque: 1.0N.m ~ 5.0N.m
Life time: 2000 ~ 5000 hours
Typical Motor Type: 36mm; 42mm diameter long life brushless DC planetary gear motors 36mm; 42mm diameter brushed DC planetary gear motors (optional encoder)
Robot Lawn Mower Cutting Motor General Technical Specifications:
Motor Type: Brushless / brushed DC motor
Operating Voltage: 12 ~ 24V DC
Rated Speed: 3000 ~ 8000rpm
Rated Torque:0.10 ~ 0.5N.m
Output Power: 18W ~ 100W
Life time: 2000 ~ 10000 hours
Typical Motor Type: 42mm square brushless DC motor; 52mm, 57mm diameter brushless DC motor
