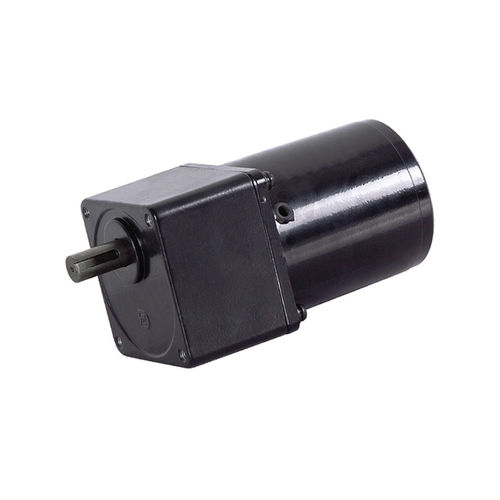

Spur gear-motor 90YN40/JB

single-phaseinductioncoaxial

Characteristics Motor type : AC Single-Phase Motor Gearbox type : Spur Diameter : 90mm Nominal voltage : 115V;230V Gear ratio : 1:3 ~1:180 Current : 0.36A;0.40A;0.64A;0.68A Frequency : 50Hz/60Hz Nominal speed : 1300rpm Permissible load range : Up to 20.0N.m for S1 duty cycle Nominal power : 40W Description Compact design AC induction single-phase spur gear motor The 90YN40 model of AC motor is equipped with a square spur gearbox Options Optional components:Z-Damper, R-Thermal Protector,T-Speed Motor,D-Brake Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 3000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc. Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.
