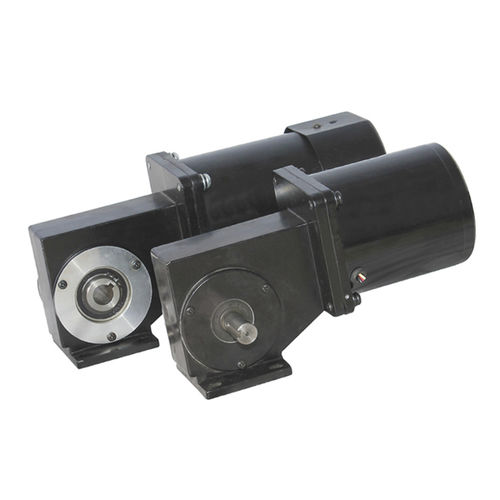

Worm gear-motor 90YN/90JW

single-phaseinductionpermanent magnet

Characteristics Motor type : AC Single-Phase Motor Gearbox type : Worm/Right angle Diameter : AC motor:90mm Nominal voltage : 115V,230V Gear ratio : 1:12.5;1:16;1:25;1:32;1:40;1:50 Nominal speed : 26rpm;32rpm;40rpm;52rpm;81rpm;104rpm Permissible load range : Up to 20.0N.m for S1 duty cycle Nominal power : 40W;60W;90W Description Compact design AC single-phase worm gear motor The 90YN model of AC motor is equipped with a 90JW worm gearbox Options Left ,right or hollow output shaft are available. components:Z-Damper(40W),P-Thermal Protector,T-Speed Motor,D-Brake,F-Cool Fan(Standard 60W and 90W motor) Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 3000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
