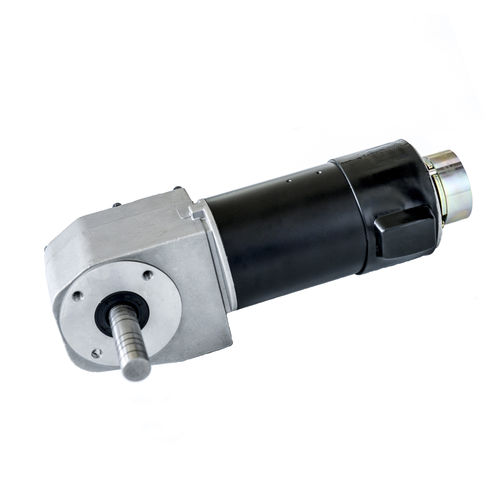

Stairlift gear-motor 90ZY165CD-133WJDCwormright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Voltage
- 24 V
- Torque
- 200 - 500 Nm
- Product applications
- for stairlifts
- Other characteristics
- low-speed, with brake
Description
STAIRLIFT DC RIGHT ANGLE GEAR MOTOR 90ZY165CD-133WJ SPECS AND FEATURE:
· Voltage 24V DC
· No-Load Speed 20rpm
· Max. Efficiency 34.38%
· Max. Efficiency Point 53.69N.m@16rpm
· Stall Torque after Gearbox 319.33N.m ( Stall Current 55.0A )
· Gear Ratio 160/1
