DC gearmotor Stairlift Motor 001
wormright anglesolid-shaft

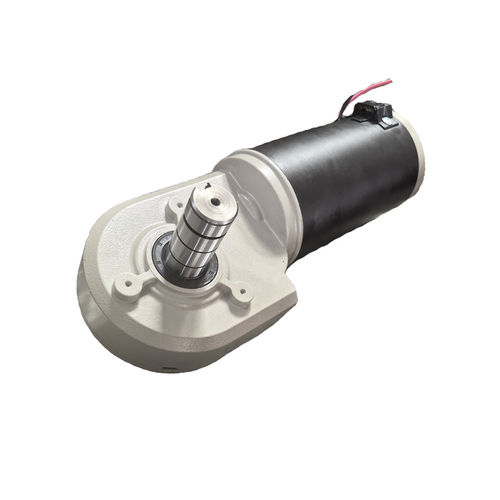

DC gearmotor - Stairlift Motor 001 - Zhejiang Dongzheng Motor Co., Ltd. - worm / right angle / solid-shaft
DC gearmotor - Stairlift Motor 001 - Zhejiang Dongzheng Motor Co., Ltd. - worm / right angle / solid-shaft
DC gearmotor - Stairlift Motor 001 - Zhejiang Dongzheng Motor Co., Ltd. - worm / right angle / solid-shaft - image - 2
DC gearmotor - Stairlift Motor 001 - Zhejiang Dongzheng Motor Co., Ltd. - worm / right angle / solid-shaft - image - 3
DC gearmotor - Stairlift Motor 001 - Zhejiang Dongzheng Motor Co., Ltd. - worm / right angle / solid-shaft - image - 4
DC gearmotor - Stairlift Motor 001 - Zhejiang Dongzheng Motor Co., Ltd. - worm / right angle / solid-shaft - image - 5
Add to favorites
Compare this product
Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

Motor type
DC
Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
100 W...500 W
Voltage
24 V
Torque
50 - 100 Nm
Mounting
flange-mounted
Performance
low-noise, high-torque, high-performance, high-efficiency, high load capacity
Product applications
for lifting applications, for wheelchairs
Certifications
CE, ISO
Other characteristics
compact, efficiency, maintenance-free, IP65, with brake
Gear ratio

120 unit

Max.: 160 unit

Min.: 80 unit

Operating temperature

25 °C
(77 °F)

Max.: 65 °C
(149 °F)

Min.: -45 °C
(-49 °F)

Rotational speed

20 rpm
(125.6637 rad.min-1)

Max.: 100 rpm
(628.3185 rad.min-1)

Min.: 15 rpm
(94.2478 rad.min-1)

Description

STAIRLIFT DC RIGHT ANGLE GEAR MOTOR 90ZY165CD-118WJ SPECS AND FEATURE: · Voltage 24V DC · Rated Speed 20rpm · Rated Torque 60N.m · Gear Ratio 120/1 · Custom specifications available upon request STAIR LIFT DC GEAR MOTOR STAIR CHAIR GEAR MOTOR STAIRLIFT GEAR MOTOR STAIR LIFT MOTOR Custom stair lift motors, gear motors and custom stair lift motor assemblies.
