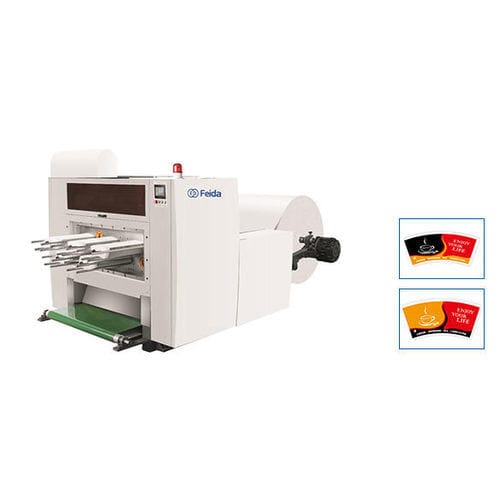

Rolling punching machine FDC series

automaticfor paperpaper cup

FDC series automatic roll punching machine based on international advanced technology, it’s widely used in paper cup fan products. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication. The equipment is suitable for paper thickness of 150-350 gsm roll paper for rapid and precise punching, collecting and stripping at the same time, can be applied to paper cups, paper bowl, paper plate etc. Main Structure 1. It adopts micro-computer, human-computer control interface, direct connection servo positioning which make higher accurancy, and we make the wallboard, base much stronger than others, it guarantees that when the machine runs up to 380 strokes/min without any shaking. 2.Lubrication System: Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life, you could set it to lubricate 10 secondes every 6 minutes. 3. The die-cutting force is provided by a 5.5KW inverter motor. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced. We adopt two swing arm cams which are much easier to adjust and opearte when you change the punching mould, and it has higher stable pressure and higer performance.
