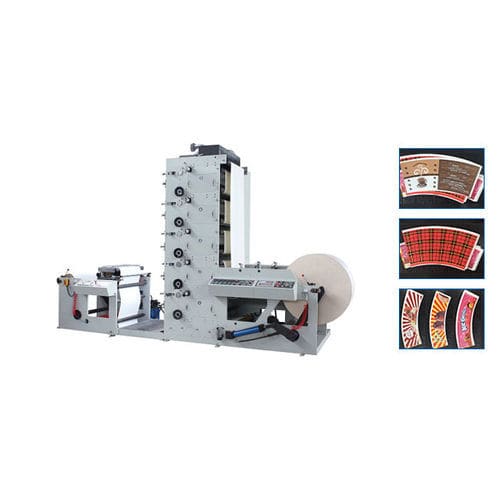

Rotogravure printing machine Flexo

automatic

A. DESCRIPTION 1、Unwinding unit and rewinding unit • automatic loading and unloading by hydraulic • Magnetic powder as brake, motor as clutch 2、Auto web guiding • Splicing table • Detection mode: edge checking • Precision: ±0.1mm 3、Feeding system • Rubber rollers for feeding 4、Printing unit 4 units • Helical gear • Ceramic anilox roller: one set (4 pcs) • Printing cylinder: one set (4 pcs) • Ceramic anilox roller: LPI depends on buyer • Printing cylinder: repeat depends on buyer • Single side doctor blade • Ink case • Gear：cp1/8 5、Drying system • IR 6、Auto stopping function 7、Meter counter 8、Simple plate mounter B. Technical parameter 1. Max unwinding diameter: 1200mm 2. Printing repeat: 250mm-580mm (79T – 182T) 3. Max width: 950mm 4. Max printing width: 950mm 5. Power supply: 380V 3PH 50Hz 6. Total power: 30KW 7. Machine speed: 0-80m/min 8. Printing plate thickness: 1.7mm 9. Double glue tap thickness: 0.38mm 10. Printing precision: ±0.15mm 11. Air shaft diameter: 3inches
