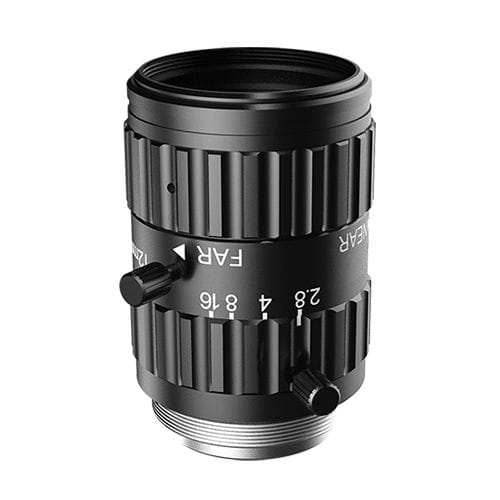

Fixed-focus camera lens MK-M series
machine visioninspectionhigh-resolution

Fixed-focus camera lens - MK-M series - Zhejiang Huaray Technology Co., Ltd. - machine vision / inspection / high-resolution

Fixed-focus camera lens - MK-M series - Zhejiang Huaray Technology Co., Ltd. - machine vision / inspection / high-resolution - image - 2

Fixed-focus camera lens - MK-M series - Zhejiang Huaray Technology Co., Ltd. - machine vision / inspection / high-resolution - image - 3

Fixed-focus camera lens - MK-M series - Zhejiang Huaray Technology Co., Ltd. - machine vision / inspection / high-resolution - image - 4

Fixed-focus camera lens - MK-M series - Zhejiang Huaray Technology Co., Ltd. - machine vision / inspection / high-resolution - image - 5

Add to favorites

Compare this product

Characteristics

Type

fixed-focus

Technical applications

machine vision, inspection

Other characteristics

high-resolution, low-distortion

Focal length

Min.: 12 mm
(0.47 in)

Max.: 50 mm
(1.97 in)

Description

● Support up to 2/3" camera sensors; ● 5 models, focal length covering from 12mm to 50mm; ● Ultra high resolution, 10MP resolution in full view, matching up to 1.67μm pixel size;； ● Ultra low distortion； ● Stable sharpness quality when temperature varies from -20℃~50℃； Aperture F2.8-F16 Image Sensor Size Ф11.4 mm(2/3'') Focus Range 0.1 m to infinite Optical Distortion -0.55% TV Distortion -0.20% Field of View 49.2°×40.2°×30.8°(11 mm×8.5 mm×7.12 mm) Relative Illumination 64% (F2.8); 84% (F4.0) CRA（Chief Ray Angle) 6.14° Spectral Range 400 nm~700 nm Spectral Transmission T＞85% Camera Mount C-Mount Filter Thread M25.5xP0.5 Focus Control Manual Iris Control Manual Product Dimensions 43.2mm×Ф30 mm Weight 70 g
