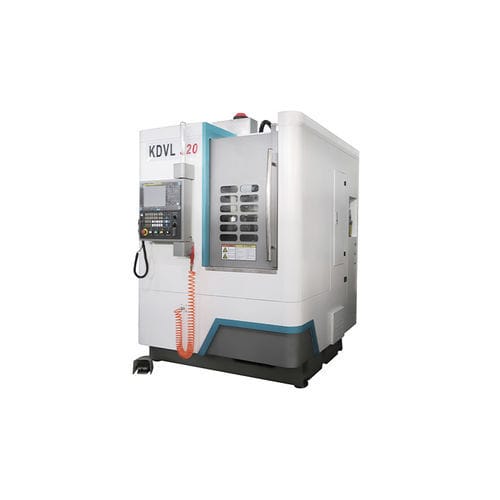

CNC turning center KDVL320/320HverticalA2-68 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Spindle mount
- A2-6
- Number of tool stations
- 8 tools
- Applications
- heavy-duty
- Performance
- high-rigidity
- Other characteristics
- compact
- Diameter
250 mm, 320 mm
(9.84 in, 12.6 in)- Spindle speed
Min.: 100 rpm
(628.319 rad.min-1)Max.: 2,800 rpm
(17,592.919 rad.min-1)- Maximum part length
400 mm, 420 mm
(16 in, 17 in)- Maximum cutting diameter
250 mm, 320 mm
(10 in, 13 in)- Axe Z
450 mm
(18 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
1,700 mm
(67 in)- Overall width
2,400 mm
(94 in)- Overall height
2,360 mm
(93 in)- Weight
3,500 kg
(7,716 lb)
Description
1. The machine design adopts mechanical, electrical and hydraulic integration method with a compact structure.
2. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
3. Automatic centralized lubrication with full sufficiency and reliability.
4. Full protection design with nice shape. Easy to operate and maintain
Article - Unit - KDVL460 - KDVL460H
Spindle - - -
Ø inside the front axle bearing - mm - Ø100
Spindle speed range - rpm - 100-2800 -
Spindle speed steps - - continuous -
Ø of chuck - inch - 10 -
Tower -
- -
Type of tool holder - - Hydraulic -
Tool Holding Stations - pzs - 8 - 12
Tool shank size (square) - mm - 25×25 - 20×20
Tool shank size (round) - mm - Ø32 -
Others - -
Main engine power - kw - 7.5/11 -
Active tool servo motor power - kw - - 2.2/3.7
Hydraulic motor - kw - 1.5 -
Coolant pump motor - w - 200
