- Zhejiang KAIDA Machine Tool CO., LTD.

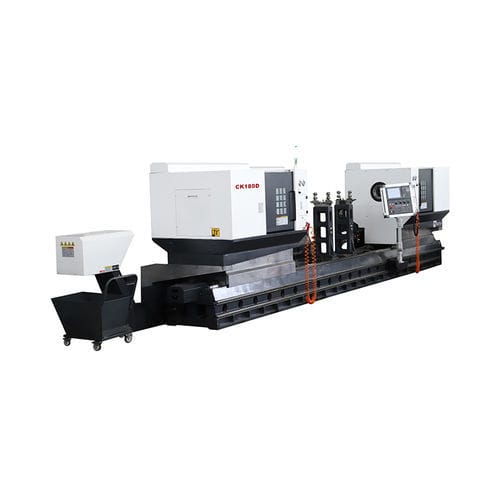

CNC turning center CK120D/180D2-axis4 toolshigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 4 tools
- Performance
- high-precision, high-rigidity, high-productivity, high-performance
- Diameter
Min.: 50 mm
(1.97 in)Max.: 180 mm
(7.09 in)- Spindle speed
700 rpm, 1,400 rpm
(4,398.23 rad.min-1, 8,796.459 rad.min-1)- Axe X
140 mm
(6 in)- Axe Z
140 mm, 1,200 mm
(6 in, 47 in)- Rapids on X
20 m/min
- Rapids on Z
12 m/min, 20 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
6,800 mm, 8,000 mm
(268 in, 315 in)- Overall width
1,800 mm
(71 in)- Overall height
1,700 mm
(67 in)
Description
Flat bed, connected bed base, high rigidity of the whole machine;
Both left and right are equipped with spindle holder. Synchronous drive of left and right spindle holder.
The left and right components have independent drive shafts for automatic loading and unloading of parts.
Item - Unit - CK120D - CK180D
Processing - -
-
Spindle clamping range - mm - Ф50~Ф120 - Ф80~Ф180
Range of workpiece length - mm - 750~3000 - 800~4200
X1、X2 axis Max. travel - mm - 140 - 140
Z1、Z2 axis Max. travel - mm - 600 - 600
Z3、Z4 axis Max. travel - mm - 1200 - 1800
Max. clamping Dia. - mm - Ø120 - Ø180
Max. spindle clamping speed - r/min - 1400 - 700
Feed - - -
Rapid feed(X1/X2) - m/min - 20 - 20
Rapid feed(Z1/Z2) - m/min - 20 - 20
Rapid feed(Z3/Z4) - m/min - 12 - 12
Turret - - -
Number of left & right tool post stations - - 4 - 4
Standard outer Dia. tool size - mm - 25×25 - 25×25
Tailstock - - -
Dia. of left & right tailstock sleeve - mm - Ø80 - Ø80
Travel of left & right tailstock sleeve - mm - Ø120 - Ø120
Taper of left & right tailstock sleeve - - M.T.No.4 - M.T.No.4
Travel of left & right tailstock - mm - 550 - 550
Others - - -
Left & right spindle motor power - kW - 7.5 - 11
Overall dimensions (L×W×H) - mm - 6800×1800×1700 - 8000×1800×1700
CNC system - - Mitsubishi M80A - Mitsubishi M80A
