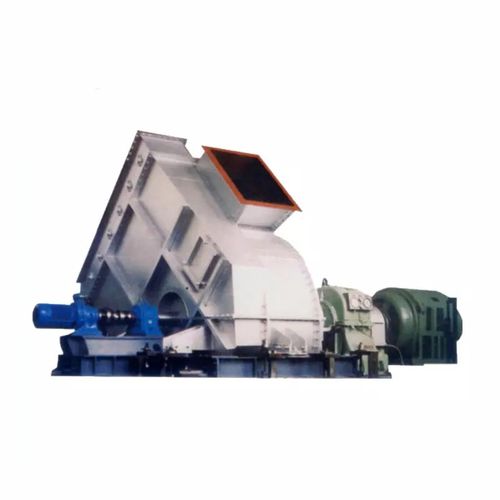

High-temperature fan BB24/BB50 series

floor-standingcentrifugalsuction

BB24/BB50 series High temperature cement preheater Product Description Product Parameters Uses: used for cement rotary kiln in the waste gas processing，for 300~12000 tons/day of cement production line. The impeller diameter: 2200~3500mm Air volume range: 200000~850000 m3/h Pressure range: 8500 pa Dust content:100 g/m3 Working temperature: 20°C~350°C,instantaneous temperature of 450°C Driving mode: D,the F type is in the majority Product Characteristics ※ Single or double suction, backward centrifugal impeller, has the characteristics of high efficiency and low noise. ※ The technology from Britain hao Dan company introduces, wear resistance, high temperature resistant, high efficiency, etc. ※ Casing inlet is equipped with high efficient convergence streamlined inlet, which makes the air can be within the scope of the flow channel width of uniform distribution. ※ Transmission part group consists of main shaft, bearing box, rolling bearing, coupling, etc. ※ Standard components such as inlet and outlet flexible joints, electrical actuator, elctrical control equipment measurement,lubrication station. ※ Inlet and outlet adjusting valve, bearing temperature and vibration sensers are optional.
