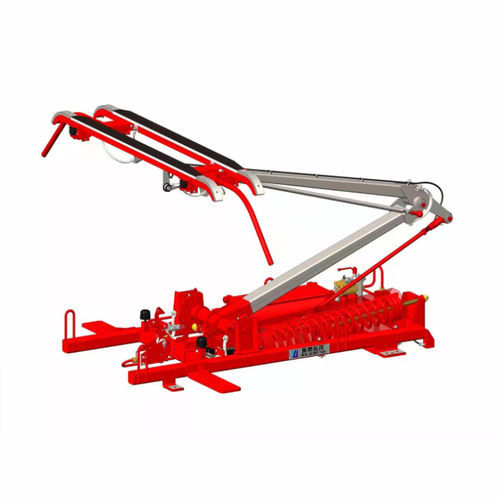

Intercity train pantograph YT7100 Series
for metrosDCAC

Intercity train pantograph - YT7100 Series - Zhejiang Yonggui Electric Equipment Co., Ltd. - for metros / DC / AC

Add to favorites

Compare this product

Characteristics

Train type

for intercity trains, for metros

Power system

DC, AC

Other characteristics

single-arm

Maximum supported speed

160 km/h
(99 mph)

Nominal voltage

1.5 kV, 25 kV

Contact force

Min.: 49 N

Max.: 70 N

Weight

Min.: 100 kg
(220.462 lb)

Max.: 140 kg
(308.647 lb)

Working extension

1,700 mm
(66.9 in)

Description

Pantograph (metro/ Intercity line ） YT7100 Series Contact line voltage： DC 1500V and/or AC 25kV Pantograph name：single arm pantograph Max. operating speed ：160 km/h Current collecting performance：Max1200A /RMS 800 A Lowering/raising：raising:spring/lowering:air Raising method： Electromagnetic hook release/ air hook release Operating air pressure：490 - 880 kPa Static contact force：49 - 70 N Pantograph height：Max working 1700 mm Contact strip ：Copper sintered alloy, metal- impregnated carbon strip, pure carbon strip Contact strip fixing method: bolt fastening mass：100 - 140 kg (without insulators) Working environment temperature： -20 – 50°
