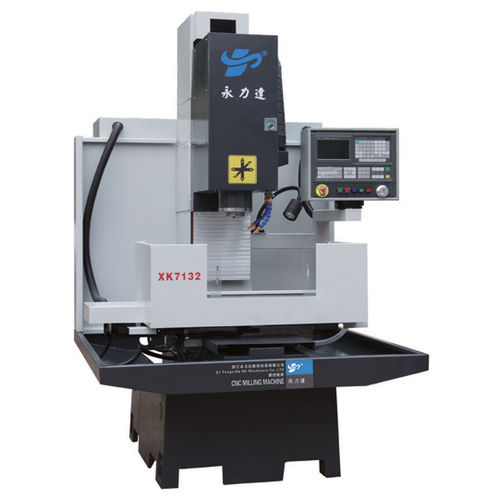

3-axis CNC milling machine XK7132verticalBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- X travel
500 mm
(20 in)- Y travel
300 mm
(12 in)- Z travel
360 mm
(14 in)- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 100 rpm
(628 rad.min-1)- Power
3 kW
(4.08 hp)- Weight
2,000 kg
(4,409.25 lb)- Overall length
1,500 mm
(59.1 in)- Overall width
1,800 mm
(70.9 in)- Overall height
2,200 mm
(86.6 in)
Description
Table size (length * width)
850*320mm2
Distance from spindle center to column guideway
300mm
Distance from spindle from working table
510mm
X, Y axis motor torque
16NM
The Z axis motor torque
16NM
Feed motor
Hybrid stepping motor
Tool change
Pneumatic knife
Minimum setting unit
0.01mm
