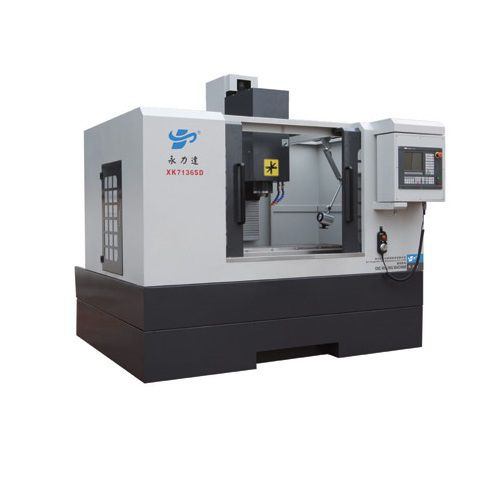

3-axis CNC milling machine XK7136SDverticalBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- X travel
650 mm
(26 in)- Y travel
360 mm
(14 in)- Z travel
360 mm
(14 in)- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 100 rpm
(628 rad.min-1)- Power
3 kW
(4.08 hp)- Weight
3,000 kg
(6,613.87 lb)- Overall length
2,400 mm
(94.5 in)- Overall width
2,000 mm
(78.7 in)- Overall height
2,400 mm
(94.5 in)
Description
Table size (length * width)
1200*320mm2
Distance from spindle center to column guideway
360mm
Distance from spindle from working table
510mm
X, Y axis motor torque
6NM
The Z axis motor torque
6NM
Feed motor
AC servo motor
Tool change
Pneumatic knife
Minimum setting unit
0.001mm
